Capodichino Airport, Italy
- Lamp efficacy
Lamp efficacy
Ensuring the lamp efficiently converts electricity into light (lm/W).
- Ballast classification
Ballast classification
Controlling the electricity supply to the lamp (Energy Efficiency Index).
- Luminaire distribution
Luminaire distribution
Controlling light emission using optics which bend and shape the light to the correct location.
- System efficacy
System efficacy
Combining optical and thermal control within the luminaire (luminaire lm/W).
- Presence/absence detection
Presence/absence detection
Presence: Lights automatically turn on/off with movement. Absence: Lights automatically turn off and must be manually switched on.
- Daylight detection
Daylight detection
Artificial lighting which responds to the natural light conditions.
- Constant illuminance
Constant illuminance
A function designed to produce correct light levels for the duration of the maintenance period.
- Task-scene setting
Task-scene setting
Allowing the user to set scenes and adapt the lighting to different tasks.
- Timed off
Timed off
Automatic cut-off can be installed to turn all lights off during unoccupied hours.
- Task lighting
Task lighting
Lighting task areas with the correct amount of light.
- Zoning of lighting
Zoning of lighting
Lighting is zoned according to area use.
- Maintenance schedule
Maintenance schedule
Maintenance must be performed in response to product age, performance and environment.
- Waste light
Waste light
Eliminating waste light which does not hit the intended target.
- Reflectance
Reflectance
Taking advantage of light which is reflected from the surface within the space.
- Visible smart metering
Visible smart metering
Results of actions can be quickly seen as increased or decreased energy use to encourage responsible energy consumption.
Clan and Quattro LED slash energy consumption by 58 per cent at Capodichino Airport
Following a refurbishment project to improve the energy efficiency at Capodichino Airport, Italy, Thorn's Clan and Quattro LED luminaires have reduced the airport's annual light energy consumption by 58 per cent. Highlights of the refurbishment include:
- A daily energy consumption reduction from 414,854W to 172,260W
- An annual energy consumption reduction from 151,422kWh to 62,874kWh
- A reduced number of fittings from 482 to 310 (36 per cent less)
- An installed power (KW) reduction from 37.71 to 17.98 (52 per cent less)
- A CO2 reduction from 101.30 to 42.06 (58 per cent less)
The refurbishment has also increased the lighting level in the outdoor public spaces by 15 per cent and the indoor lighting level from 150 to 390 lux with better uniformity.
The outdoor refurbishment, which covered areas including the main access road, car park and apron area, involved replacing 110 HST 150W street lanterns with 110 Clan LED 58W fittings. For maximum energy savings, Clan LED features our new bi-power system, which facilities night time dimming through an easy to use on/off switch.

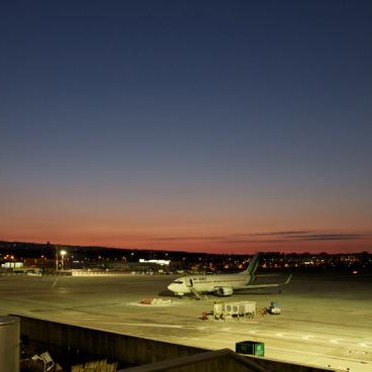

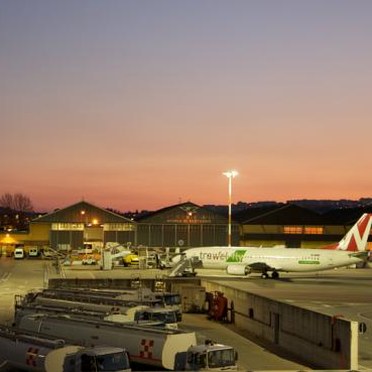

The apron area, which is lit by Champion and Mundial floodlights mounted on a high mast, is now compliant with the International Civil Aviation Organization (ICAO) standard. Some of the floodlights are hot restrike versions to cater for emergency situations.

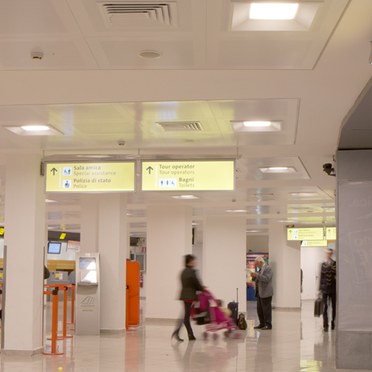

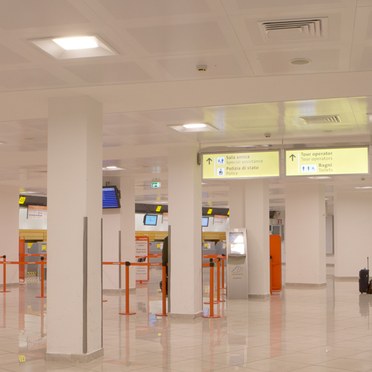

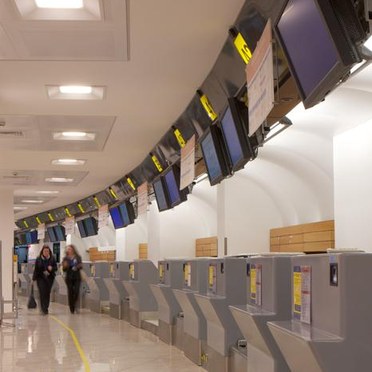

The indoor refurbishment, which covered areas including the open communal spaces, gates and ticket areas, involved replacing 372 2x26W fluorescent downlights with 200 recessed Quattro LED 58W fittings.
