  • EyeKon LED — EYE BE LED700-830 HF S ANT

EyeKon LED / EYE BE LED700-830 HF S ANT

96665954

▼ Data Sheet

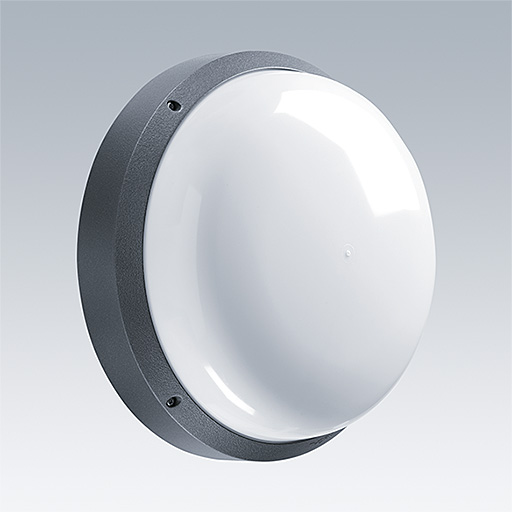

Round, impact resistant LED bulkhead luminaire. Electronic, fixed output control gear. Class I electrical, IP65, IK10. Body: small size, die-cast aluminium (LM6), powder coated anthracite. Diffuser: opal polycarbonate with die-cast aluminium bezel feature. Electrical connection via 3 x 2 x 2.5mm² terminal block. Complete with 3000K LED

Dimensions: Ø285 x 150 mm
Luminaire input power: 7 W
Weight: 2.3 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:660 lm
  • Luminaire efficacy*:94 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000692 LC 10W 150-400mA flexC C EXC
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:7 W
  • Dimming:FO
  • LED
  • EN 55015
  • GLedNr
  • 850°
  • IK10
  • IP65
  • LLedNr
  • RCM
  • SC1 - Protection Class 1
  • Ta = -20 to +35

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
