  • EyeKon LED — EYE CR LED1000-840 HF L ANT

EyeKon LED / EYE CR LED1000-840 HF L ANT

96665890

▼ Data Sheet

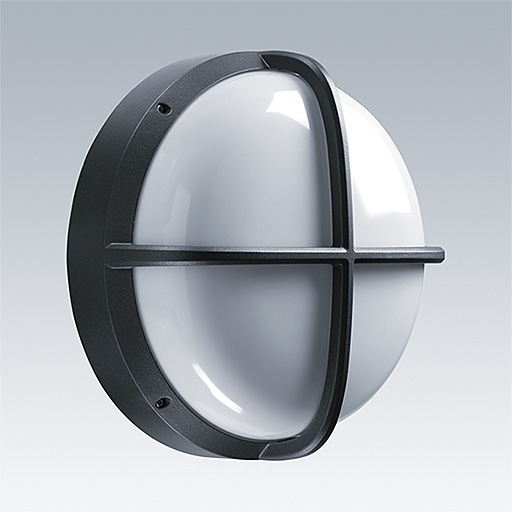

Round, impact resistant LED bulkhead luminaire. Electronic, fixed output control gear. Class I electrical, IP65, IK10. Body: large size, die-cast aluminium (LM6), powder coated anthracite. Diffuser: opal polycarbonate with die-cast aluminium cross feature. Electrical connection via 3 x 2 x 2.5mm² terminal block. Complete with 4000K LED

Dimensions: Ø340 x 155 mm
Luminaire input power: 11 W
Weight: 3.5 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:975 lm
  • Luminaire efficacy*:89 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 87501082 LC 17/250-400/42 flexC SC SNC4
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:11 W
  • Dimming:FO
  • LED
  • EN 55015
  • GLedNr
  • 850°
  • IK10
  • IP65
  • LLedNr
  • RCM
  • SC1 - Protection Class 1
  • Ta = -20 to +35
