  • Acuto LED — ACUTO LED600-840 HF BK

Acuto LED / ACUTO LED600-840 HF BK

96652313

▼ Data Sheet

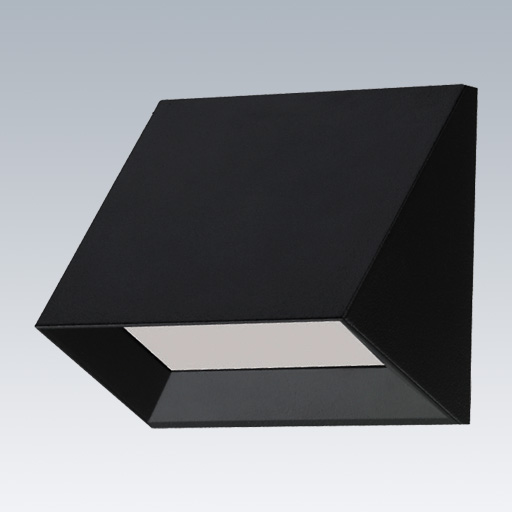

A contemporary wall mounted architectural LED luminaire for decorative facade lighting with asymmetric light distribution. Electronic, fixed output control gear. Class II electrical, IP65, IK06. Body:die-cast aluminium (EN AB-47100), powder coated textured black (close to RAL 9005), frosted tempered glass. Complete with 4000K LED.

Dimensions: 120 x 120 x 105 mm
Weight: 0.75 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:570 lm
  • Luminaire efficacy*:70 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):4
  • Rated median useful life*:L70 50000 h at 25 °C
  • Ballast:1x EL
  • Luminaire input power*:8.2 W Power factor = 0.55
  • Dimming:FO
  • LED
  • 850°
  • IK06
  • IP65
  • Coastal_C4
  • RCM
  • RoHs
  • SC2 - Protection Class 2
  • Ta = -20 to +35

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
