Volupto
Elegance and intelligence for urban space

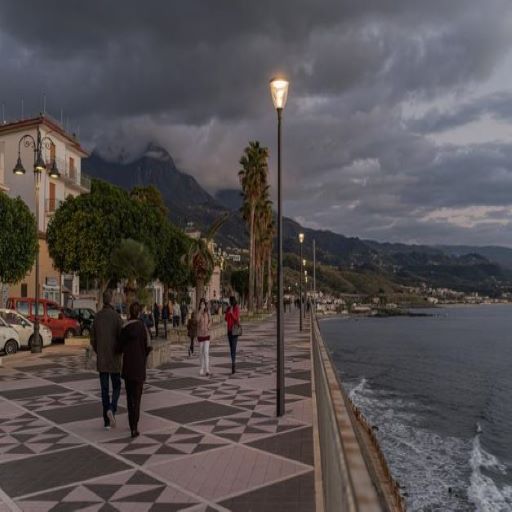

- Its elegant appearance and gentle glow brings safety and identity to any urban space
- The perfect focal glow with its high-tech mixing chamber, minimizes glare and maximizes efficiency for an unobtrusive luminous effect with 2 bowls esthetics
- Respectful of the environment with warm color temperature and reduced upward lighting <1% with dedicated optics
- Fully integrated motion detection sensor communicating through pilot wire or Zhaga interface.
- Zd4i certified on request
Materials and Finish
Base and canopy: corrosion resistant die cast powder-coated aluminium (EN AC-44300) finished texturized anthracite grey (close to RAL7043) Via the configurator: Texturized light grey (GY), Black (BK) and 48 other RAL possibilities.
Corrosion class C5 according to ISO 9223: 2012.

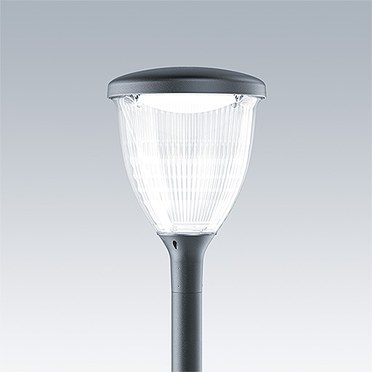

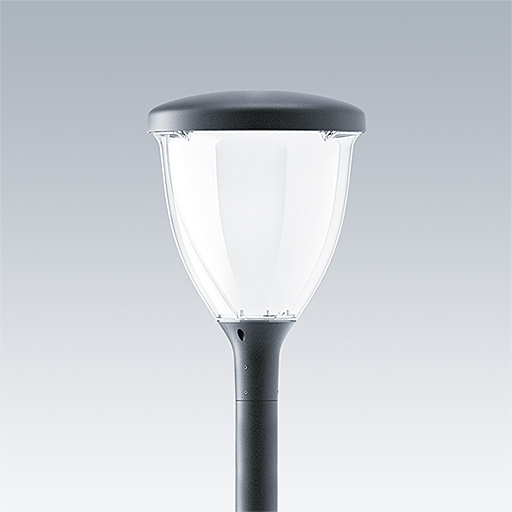

Diffuser: UV stabilised polycarbonate semi-frosted or clear.
Internal reflector: highly reflective white.
Installation and Mounting
Post top mounting: on spigot/columns Ø60mm or Ø76mm. Low weight for ease of manipulation. Pre-wired for ease of installation, 1 tool. 120° fixing screws for perfect adjustment on the pole. Maintenance with access from above, 1 tool.
Specification
To specify state:
Decorative post top LED lantern, 2 enclosure finish, extensive optical, lumen and light distribution choice. Efficient R-PEC or A-PEC optic with a choice of light distributions for precise light placement with minimum waste of light. Comfortable for citizens, thanks to an optimized diffuser. Wide range of intelligent lighting control solutions: DALI2 dimmable(HFX), Bi-Power (BP), Constant Light Output (CLO), Bi-power Line (BPL), Light Reduction Twin Phases (LRT), Zhaga interface Up (ZU), Motion detection (MAS/SLA or MZ/SZ)
As Thorn Volupto
▼ Volupto, Radial symmetric optic
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| VO 18L105-740 SF RS CL1 W5 T60 ANT | 60 | 7458 | LED | 7.59 | 96631909 | ||||
| VO 18L105-740 SF RS CL2 W5 T60 ANT | 60 | 7458 | LED | 7.48 | 96631908 | ||||
| VO 18L35-740 SF RS CL1 W5 T60 ANT | 20 | 2856 | LED | 7.59 | 96631903 | ||||
| VO 18L35-740 SF RS CL2 W5 T60 ANT | 20 | 2856 | LED | 7.48 | 96631902 | ||||
| VO 18L50-740 SF RS CL1 W5 T60 ANT | 28 | 3938 | LED | 7.59 | 96631905 | ||||
| VO 18L50-740 SF RS CL2 W5 T60 ANT | 28 | 3938 | LED | 7.48 | 96631904 | ||||
| VO 18L70-740 SF RS CL1 W5 T60 ANT | 39 | 5294 | LED | 7.59 | 96631907 | ||||
| VO 18L70-740 SF RS CL1 W5 T76 ANT | 39 | 5294 | LED | 8.87 | 92913326 | ||||
| VO 18L70-740 SF RS CL2 W5 T60 ANT | 39 | 5294 | LED | 7.48 | 96631906 |
▼ Volupto, Wide street comfort optic
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| VO 12L105-740 SF WSC CL1 W5 T60 ANT | 40 | 5181 | LED | 7.53 | 96631895 | ||||
| VO 12L105-740 SF WSC CL2 W5 T60 ANT | 40 | 5181 | LED | 7.42 | 96631894 | ||||
| VO 12L35-740 SF WSC CL1 W5 T60 ANT | 13 | 1977 | LED | 7.53 | 96631889 | ||||
| VO 12L35-740 SF WSC CL2 W5 T60 ANT | 13 | 1977 | LED | 7.42 | 96631888 | ||||
| VO 12L50-740 SF WSC CL1 W5 T60 ANT | 19 | 2729 | LED | 7.53 | 96631891 | ||||
| VO 12L50-740 SF WSC CL2 W5 T60 ANT | 19 | 2729 | LED | 7.42 | 96631890 | ||||
| VO 12L70-740 SF WSC CL1 W5 T60 ANT | 26 | 3676 | LED | 7.53 | 96631893 | ||||
| VO 12L70-740 SF WSC CL2 W5 T60 ANT | 26 | 3676 | LED | 7.42 | 96631892 | ||||
| VO 24L35-740 SF WSC CL1 W5 T60 ANT | 26 | 3935 | LED | 7.59 | 96631897 | ||||
| VO 24L35-740 SF WSC CL2 W5 T60 ANT | 26 | 3935 | LED | 7.47 | 96631896 | ||||
| VO 24L50-740 SF WSC CL1 W5 T60 ANT | 36 | 5412 | LED | 7.59 | 96631899 | ||||
| VO 24L50-740 SF WSC CL2 W5 T60 ANT | 36 | 5412 | LED | 7.47 | 96631898 | ||||
| VO 24L70-740 SF WSC CL1 W5 T60 ANT | 51 | 7250 | LED | 7.59 | 96631901 | ||||
| VO 24L70-740 SF WSC CL2 W5 T60 ANT | 51 | 7250 | LED | 7.47 | 96631900 |
