Urba Deco / UD 24L50-730 WSC-S CL1 WS1 T60T BK

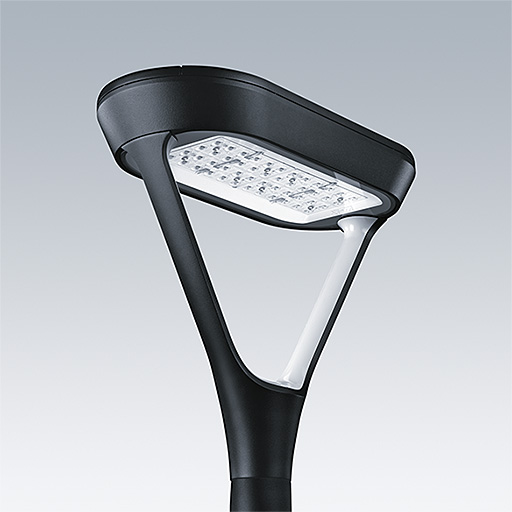

A smart, sophisticated architectural urban lantern with 24 LEDs driven at 500mA and a Wide Street Comfort (symmetrical) optic. Electronic, fixed output control gear. Class I electrical, IP66, Impact strength: IK10. Canopy and base: die-cast aluminium (AS9U3, LM24 equivalent, EN AC-46000) textured black (close to RAL9005). Enclosure: 6mm thick clear glass. Arms: die-cast aluminium textured black (close to RAL9005) covered with a shield in plastic ASA. Pre-wired with 1m cable. Post top mounting to Ø60mm column, luminaire perpendicular to the road. Complete with 3000K LED.

Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode.

Dimensions: 510 x 241 x 474 mm
Luminaire input power: 36.1 W
Luminaire luminous flux: 5191 lm
Luminaire efficacy: 144 lm/W
Weight: 7.14 kg
Scx: 0.049 m²

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:5191 lm
• Luminaire efficacy*:144 lm/W
• Colour Rendering Index min.:70
• Ballast:1 x 87500877 LCO 40/200-1050/64 NF C ADV3
• Correlated colour temperature*:3000 Kelvin
• Chromaticity tolerance (initial MacAdam):5
• Rated useful life (B10)*:L95 100000 h at 35 °C
• Luminaire input power*:36.1 W
• Dimming:FO
