  • Raze Bollard — RAB 1L20-830 WPC HF/R MAS CL1 6K 700 ANT

Raze Bollard / RAB 1L20-830 WPC HF/R MAS CL1 6K 700 ANT

96632078

▼ Data Sheet

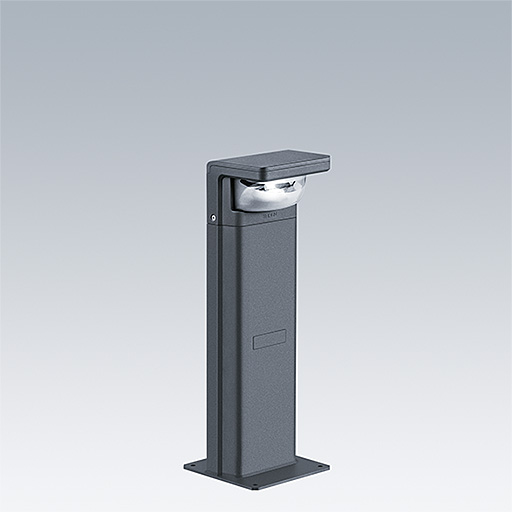

A flange mounted LED bollard of 700mm height, incorporating Thorn's Flat beam® technology. 1 LED driven at 200mA. LED driver included. Class I electrical, IP66, IK10. Housing: die-cast aluminium (EN44300, compatible with seaside installation), powder coated, textured anthracite (close to RAL7043). Bowl: UV stabilised polycarbonate, semi-frosted. Fasteners: stainless steel. Complete with 3000K LED.

6kV surge protection as standard. 200mm x 200mm fixing centres, bolts not included.

Dimensions: 173 x 220 x 700 mm
Luminaire input power: 9 W
Luminaire luminous flux: 403 lm
Luminaire efficacy: 45 lm/W
Weight: 7.38 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:403 lm
  • Luminaire efficacy*:45 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28003160 LCO 40/200-1050/64 o4a NF C EXC3
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated useful life (B10)*:L70 100000 h at 25 °C
  • Luminaire input power*:9 W
  • LED
  • GLedReP
  • IK10
  • IP66
  • Coastal_C5
  • LLedReP
  • RCM
  • SC1 - Protection Class 1
