  • D-CO Bollard — D-CO LED BOLLARD 1000 30L50 840 CL2 CON

D-CO Bollard / D-CO LED BOLLARD 1000 30L50 840 CL2 CON

96262143

▼ Data Sheet

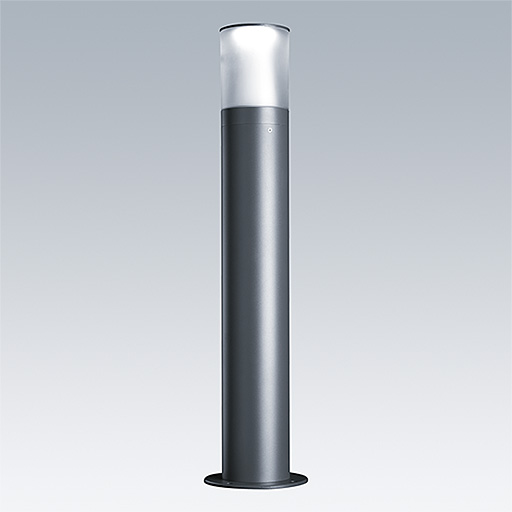

A timeless LED bollard. Electronic, fixed output control gear. Class II electrical, IP65. Top and body: aluminium powder coated grey 900. Diffuser: semi-opal anti-UV polycarbonate. Suitable for flange mounting or with root spike (available separately).Equipped with connector. Complete with 4000K LED

Dimensions: Ø150 x 1000 mm
Luminaire input power: 14 W
Weight: 5.45 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:583 lm
  • Luminaire efficacy*:42 lm/W
  • Correlated colour temperature*:4000 Kelvin
  • Rated useful life (B10)*:L80 50000 h at 25 °C
  • Ballast:1x EL2
  • Luminaire input power*:14 W Power factor = 0.97
  • Dimming:FO
  • LED
  • GLedReP
  • IK10
  • IP65
  • Coastal_C3
  • LLedNr
  • RCM
  • SC2 - Protection Class 2
  • Ta=50°C

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
