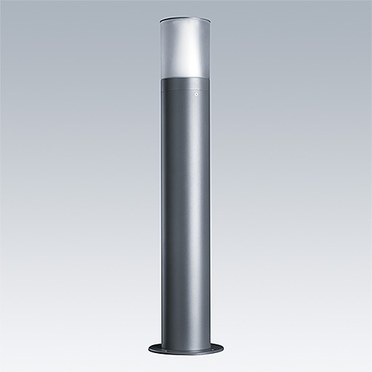

D-CO Bollard
A timeless bollard offering comfortable visual guidance
- Comfortable white light with no glare provided by a semi-opal anti-UV PC diffuser
- Suitable for a wide range of guidance applications
- 60,000 hour lifetime (L80, 25°) ensures low maintenance costs
- Base plate mounted (option of a spike accessory for buried)
Materials and Finish
Top and body: aluminium, powder coated grey 900
Diffuser: semi-opal anti-UV polycarbonate
Installation and Mounting
Suitable for flange mounting. Can fit a 450mm root spike to be fixed into concrete base. Can fit a 600mm root spike to be fixed into the ground. Optional connector (CON) is available for CL2.
Specification
To specify state:
Timeless design 14W LED bollard with semi-opal diffuser and symmetrical light distribution.
As Thorn D-CO LED Bollard.
New Product
LumExpress Product
eControl Product
▼ D-CO LED Bollard
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| D-CO LED BOLLARD 1000 30L50 830 CL2 CON | 14 | 507 | LED | 5.45 | 96262098 | ||||
| D-CO LED BOLLARD 1000 30L50 840 CL2 CON | 14 | 583 | LED | 5.45 | 96262143 |
▼ D-CO LED Bollard MGR base adaptors
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| MGR BASE BOL RAZE/DCO/THOR C | 5.90 | 96637251 | |||||||
| MGR SPIKE BOL RAZE/DCO/THOR C | 10.00 | 96637250 |
