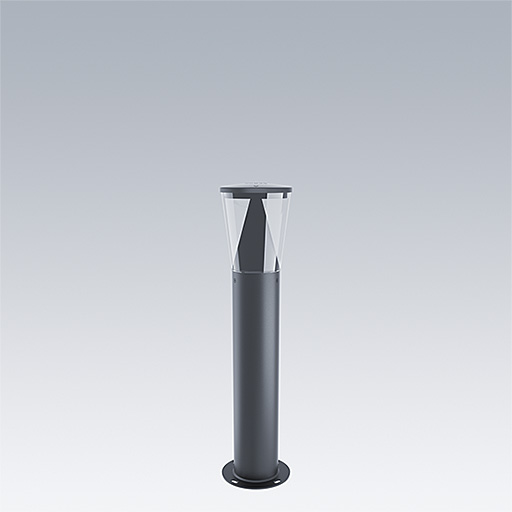

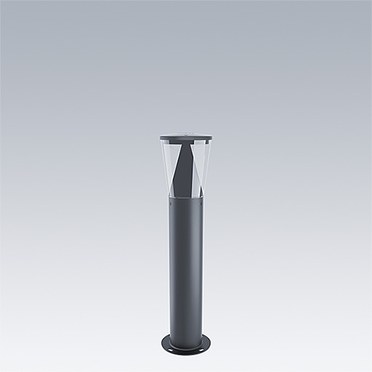

Candle Bollard
An environmentally respectful bollard with limited upward lighting emission
- Respectful of the environment with warm color temperature and reduced upward lighting <1% with dedicated optics WSC, RSC, CST
- Great lighting comfort with prismatic filter for a sparkling effect
- Bi Power switch dimming, Multilayers dimming and motion detection to reduce energy consumption
- Part of the CANDLE family
Materials and Finish
Canopy: die cast aluminium (EN AC-44300)
Finish: powder coated anthracite textured grey 900 (close to RAL7043). ) Via the configurator: Texturized light grey (GY), texturized black (BK) and 48 other RAL possibilities.
Bowl: UV stabilised polycarbonate clear
Standard corrosion class C5 according to ISO 9223: 2012.
Installation and Mounting
For Root and Flange mounting: 4 x anchor bolts M14 (96009822 to be ordered separately)
Delivered complete. Access door only for Master and Bi Power Switch variant.
Gear box (including the driver) and head (including the LEDs) are easily replaceable as spares.
Specification
An environmentally friendly bollard with low upward lighting emissions. Can be equipped with a prismatic filter creating a unique sparkling lighting signature.
Bi-power switch (BS)/ DALI2 (HFX) / Bi Power Line (BPL) / Multi Layer dimming (MLD1)/ Motion Detection sensor (MAS)
As Thorn Candle bollard
▼ Candle Bollard
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CN B 8L25-830 RSC CL1 MPL ANT | 8 | 691 | LED | 8.03 | 96680919 | ||||
| CN B 8L25-830 RSC CL2 MPL ANT | 8 | 691 | LED | 8.03 | 96680918 | ||||
| CN B 8L35-830 RSC CL1 MPL ANT | 10 | 937 | LED | 7.98 | 96679076 | ||||
| CN B 8L35-830 RSC CL2 MPL ANT | 10 | 937 | LED | 8.03 | 96679073 | ||||
| CN B 8L50-830 RSC CL1 MPL ANT | 14 | 1290 | LED | 7.98 | 96679077 | ||||
| CN B 8L50-830 RSC CL2 MPL ANT | 14 | 1290 | LED | 7.95 | 96679074 | ||||
| CN B 8L70-830 RSC CL1 MPL ANT | 19 | 1734 | LED | 7.98 | 96679078 | ||||
| CN B 8L70-830 RSC CL2 MPL ANT | 19 | 1734 | LED | 7.95 | 96679075 |
▼ Candle Bollard, accessories
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| MGR BASE BOL RAZE/DCO/THOR C | 5.90 | 96637251 | |||||||
| MGR SPIKE BOL RAZE/DCO/THOR C | 10.00 | 96637250 |
