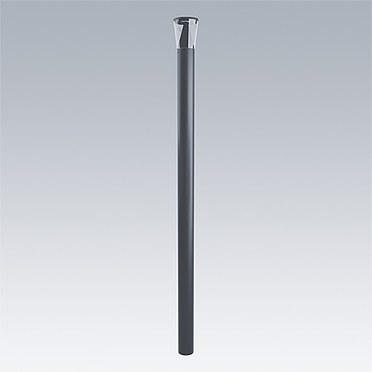

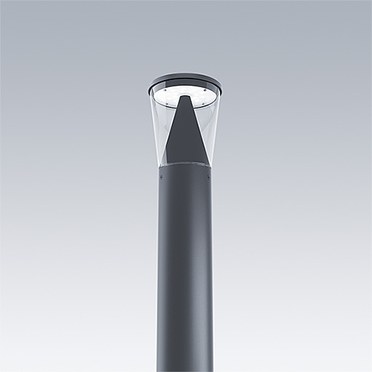

Candle
A slim sparkling lighting column for parks and building surrounds application
- Great lighting comfort with prismatic filter for a sparkling effect
- Respectful of the environment with warm color temperature and reduced upward lighting <1% with dedicated optics WSC, RSC, CST
- A unique design identity with a discreet luminaire mounted on a dedicated 160mm column (to be ordered separately)
- Part of the CANDLE family
Materials and Finish
Canopy: die cast aluminium (EN AC-44300)
Finish: powder coated anthracite textured grey 900 (close to RAL7043). ) Via the configurator: Texturized light grey (GY), Black (BK) and 48 other RAL possibilities.
Bowl: UV stabilised polycarbonate clear
Standard corrosion class C5 according to ISO 9223: 2012.
Installation and Mounting
Mounting on a dedicated 160mm column 3 or 4 meters height (to be ordered separately). Pre-wired for ease of installation. Maintenance of gear tray at the base of the luminaire.
Specification
A discreet post top lantern to be mounted on dedicated column. A low upward lighting emission with dedicated optics. Can be equipped with a prismatic filter creating a unique sparkling lighting signature.
Bi-power switch (BS)/ DALI2 (HFX) / Bi Power Line (BPL) / Multi Layer dimming (MLD1)
As Thorn Candle
▼ Candle
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CN 18L105-730 RSC CL1 W3 ANT | 59 | 5914 | LED | 4.89 | 96679086 | ||||
| CN 18L105-730 RSC CL2 W3 ANT | 59 | 5914 | LED | 4.84 | 96679082 | ||||
| CN 18L25-730 RSC CL1 W3 ANT | 15 | 1717 | LED | 4.89 | 96679083 | ||||
| CN 18L25-730 RSC CL2 W3 ANT | 15 | 1717 | LED | 4.84 | 96679079 | ||||
| CN 18L50-730 RSC CL1 W3 ANT | 28 | 3196 | LED | 4.89 | 96679084 | ||||
| CN 18L50-730 RSC CL2 W3 ANT | 28 | 3196 | LED | 4.84 | 96679080 | ||||
| CN 18L70-730 RSC CL1 W3 ANT | 39 | 4273 | LED | 4.89 | 96679085 | ||||
| CN 18L70-730 RSC CL2 W3 ANT | 39 | 4273 | LED | 4.84 | 96679081 |
▼ Candle, columns
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CANDLE POLE 3M MPL RXXXX | 38.00 | 96681052 |
