  • Lucem — LUCEM S LED1100-940 HF ADJ WH

Lucem / LUCEM S LED1100-940 HF ADJ WH

96651802

▼ Data Sheet

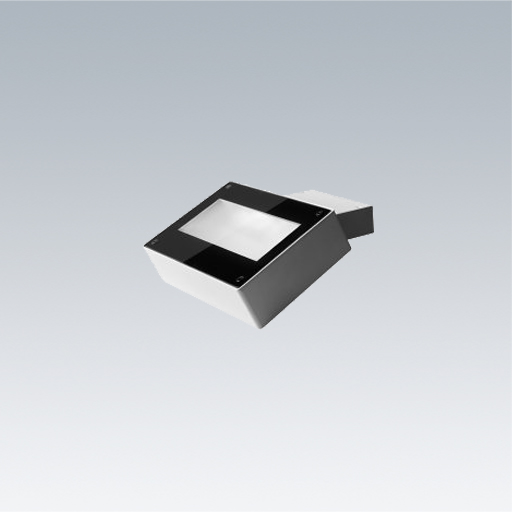

An architectural LED wall mounted luminaire with asymmetric light distribution, particularly suitable for indirect lighting applications. Electronic, fixed output control gear. Class I electrical, IP65, IK06. Body: die-cast aluminium (EN AB-47100), powder coated textured white (close to RAL9010). Adjustable tilt angle of the luminaire housing 0° - 60°. Supplied in one box, ready to install. Complete with 4000K LED.

Luminaire input power: 12.4 W
Luminaire luminous flux: 1145 lm
Luminaire efficacy: 92 lm/W
Weight: 2 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1145 lm
  • Luminaire efficacy*:92 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Ballast:1x EL
  • Luminaire input power*:12.4 W
  • Dimming:FO
  • LED
  • IK06
  • IP65
  • Coastal_C4
  • RCM
  • SC1 - Protection Class 1

▼ Photometry

Photometric configuration
