  • Lucem — LUCEM L LED5000-940 HFX ADJ BK

Lucem / LUCEM L LED5000-940 HFX ADJ BK

96651810

▼ Data Sheet

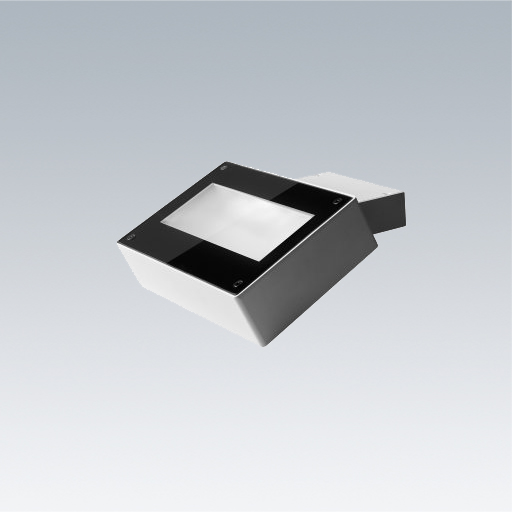

An architectural LED wall mounted luminaire with asymmetric light distribution, particularly suitable for indirect lighting applications. Electronic, DALI dimmable control gear. Class I electrical, IP65, IK06. Body: die-cast aluminium (EN AB-47100), powder coated textured black (close to RAL9005). Adjustable tilt angle of the luminaire housing 0° - 60°. Supplied in one box, ready to install. Complete with 4000K LED.

Luminaire input power: 40 W
Luminaire luminous flux: 5396 lm
Luminaire efficacy: 135 lm/W
Weight: 3.5 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:5396 lm
  • Luminaire efficacy*:135 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Ballast:1x EL
  • Luminaire input power*:40 W
  • Dimming:DA2
  • LED
  • IK06
  • IP65
  • Coastal_C4
  • RCM
  • SC1 - Protection Class 1
