  • Contrast — CONT3 52L105-722-840 NB HFX 6K ANT

Contrast / CONT3 52L105-722-840 NB HFX 6K ANT

96633459

▼ Data Sheet

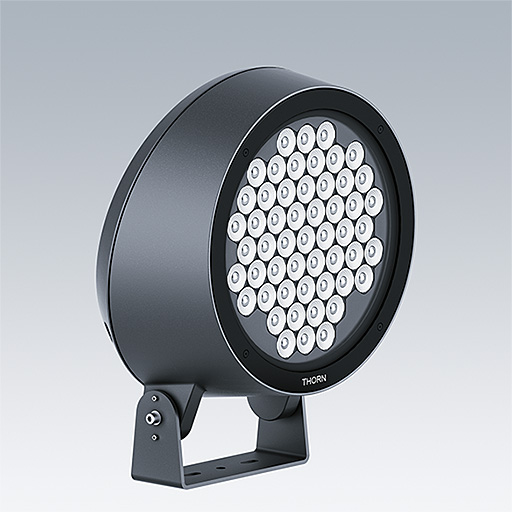

A large architectural Bracket mounted LED Floodlight with 52 LEDs driven at and a narrow beam distribution. LED driver, DALI-2 dimmable. Class II electrical, IP66, IK08. Body: die-cast aluminium (EN AC-44300), powder coated, textured anthracite (close to RAL7043). Compatible with coastal environments. Glass: tempered, 5mm thick. Gasket: EPDM. Screws: geomet. Equipped with 6kV surge protection device. Complete with 2200-4000K balanced white LEDs

,

Dimensions: Ø397 x 206 mm
Luminaire input power: 166 W
Luminaire luminous flux: 16410 lm
Luminaire efficacy: 99 lm/W
Weight: 13.1 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:16410 lm
  • Luminaire efficacy*:99 lm/W
  • Ballast:2 x 28003162 LCO 90/200-1050/165 o4a NFC C EXC3
  • Correlated colour temperature*:0 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:166 W Power factor = 0.97
  • Dimming:Dali2Dim
  • LED
  • GLedReP
  • IK08
  • IP66
  • Coastal_C5
  • LLedReP
  • RCM
  • SC2 - Protection Class 2
  • Ta= -20 to +25
