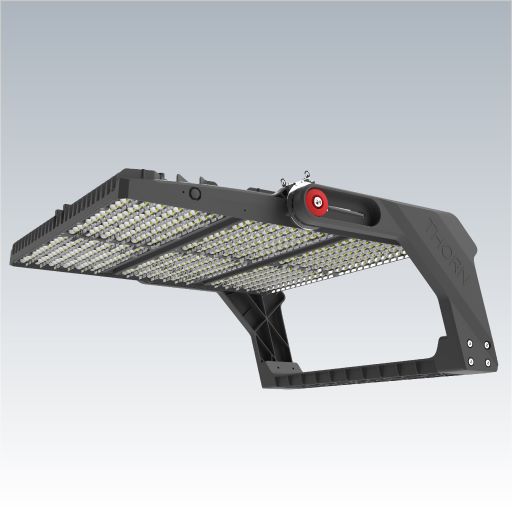

Trophy / TROPHY 468L757 AS1
96652489
▼ Data Sheet
A high powered LED floodlight with AS1 asymmetrical light distribution from 468LEDs. External DALI-2 control gear 240-415V, to be ordered separately. Class I electrical, IP66, IK08. Heatsink and bracket: die-cast aluminium powder coated silver grey (RAL 9007), suitable for coastal installation. Cover: PC lens. Bracket mounted using fixation points available (one M20 screw or two M14 screws), suitable for over and under-slinging. A single 7 core cable is required for the connection between floodlight and control gear. Ideal for sports fields and area lighting. Complete with 5700K LED with Colour Rendering Index min.: 70.
Dimensions: 799 x 724 x 326 mm
Weight: 22.4 kg
Total luminous flux: 201165 lm
Luminaire input power: 1450 W
Lamp efficacy: 139 lm/W
Scx: 0.091 at 0° tilt
- LED
- IK08
- IP66
- Coastal_C5
- RCM
- RoHs
- SC1 - Protection Class 1
- Ta = -20 to +45
