Urba / UA 24L50-740 NR CL2 T60E ANT

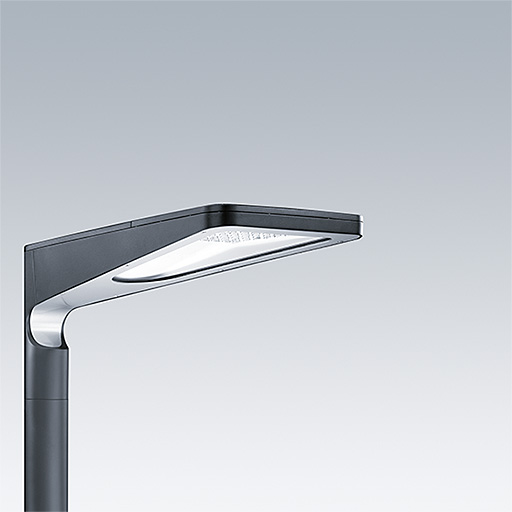

A small size LED urban street lighting lantern with 24 LEDs driven at 500mA with narrow road optic. Electronic, fixed output control gear. Class II electrical, IP66, Impact strength: IK09. Body: die-cast aluminium (EN AC-44300), textured anthracite. Cover: tempered flat clear glass. Fixings: stainless steel with anti-galvanic treatment. Post top mounting to Ø60mm column. Complete with 4000K LED.

Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode.

Dimensions: 738 x 336 x 345 mm
Luminaire input power: 36.4 W
Weight: 10.5 kg
Scx: 0.08 m²

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:5646 lm
• Luminaire efficacy*:155 lm/W
• Colour Rendering Index min.:70
• Ballast:1 x 28003160 LCO 40/200-1050/64 o4a NF C EXC3
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):5
• Rated useful life (B10)*:L90 100000 h at 25 °C
• Luminaire input power*:36.4 W
• Dimming:FO
