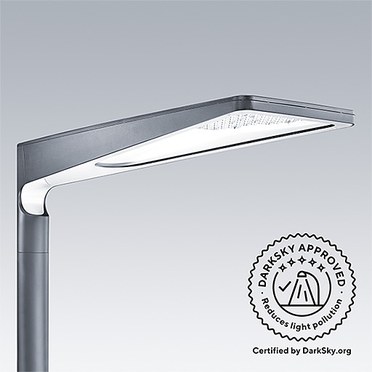

Urba

Installation and Mounting

Available in 2 sizes and can be installed at various heights.
Luminaire: Supplied complete and ready to install, in a single box. Post-top mounting Ø60mm or Ø76mm, spigot length 100mm. Side-entry mounting Ø60mm with adjustable tilt angles: 0°, -5°, -10°. Recommended pre-wiring via MyProduct Configurator.
Brackets with coordinated columns. Mounting heights for Urba small: 4 to 6m, for Urba Large: 6 to 9m. Columns delivered with anchoring bolts. Aluminium columns (diameters: internal 76mm, external 96mm - internal 60mm and external 81mm) with flange mountings: 200 x 200mm. Galvanized steel columns with flange mountings: 300x300mm

Specification

To specify Urba luminaire state:
IP66, 2 sizes, corrosion resistant class 5 urban lantern with up to 11000 lm (small size) and 25 000 lm (large size), efficiency up to up to 150 lm/W (3000K @ 350 mA) and up to 165 lm/W (4000K @ 350 mA). Highly designed urban street lantern with 3 mounting options (side entry and post top mountings, wall mounting) and a range of high efficient R-PEC optics. 60mm and 76mm diameters. Lateral mounting with tilt adjustments. 2200 K /2700 K / 3000 K /4000 K / 2200-4000 K / 2200-3000 K colour temperatures, as standard. A large choice of colour painting as standard : texturized anthracite (ANT) by default - texturized black (BK), texturized light grey (GY), texturized white (WH) 48 other RAL possibilities. Pre-wired (through configurator) with lengths of cable from 3 to 16m. Internal back light control louvre, as standard. 10Kv surge protection multi pulse and 20Kv single pulse, as standard. Zhaga up (ZU), Zhaga down (ZD) and both Zhaga up and down (ZUD) interfaces for compatibility with wireless functionalities in the market. DALI dimmable(HFX) / Bi-Power (BP) / Constant Light Output (CLO) / Bi-power Line (BPL) / Light Reduction Twin Phases (LRT) / Multi-Layers Dimming Scenario 1 (MLD1) / NightTune (722-40) and Variable light solution (722-40 with VM optic - 722-30 with VS optic). Can be combined with decorative Urba brackets and columns.
As Thorn Urba
