  • R2L2 — R2L2 S 24L50 740 WS N3 CL1 GY

R2L2 / R2L2 S 24L50 740 WS N3 CL1 GY

96268448

▼ Data Sheet

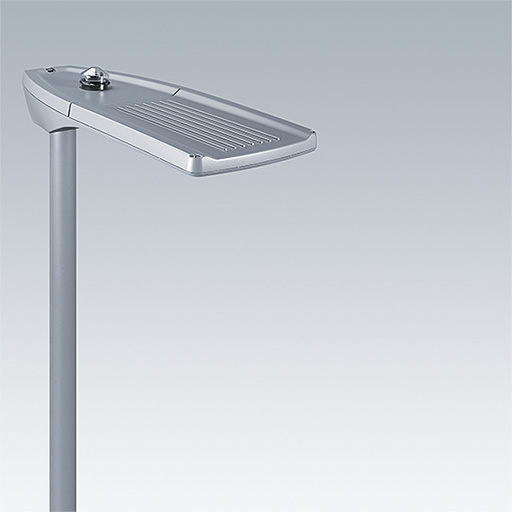

A small size LED road lighting lantern with 24 LEDs driven at 500mA with Wide Street optic. LED driver Programmable. Class I electrical, IP66, IK08. Housing: die-cast aluminium (EN AC-44300), powder coated textured light grey. Enclosure: tempered flat glass. Screws: stainless steel, Ecolubric® treated. Post top (Ø60/76mm, tilted 0°/5°/10°) or lateral (Ø34/42/49/60mm, tilted 0°/-5°/-10°/-15°) mounting. Equipped with 3 pin Nema photocell socket. Complete with 4000K LED.

Dimensions: 655 x 362 x 155 mm
Luminaire input power: 38 W
Luminaire luminous flux: 5594 lm
Luminaire efficacy: 147 lm/W
Weight: 9.66 kg
Scx: 0.05 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:5594 lm
  • Luminaire efficacy*:147 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 87500878 LCO 60/200-1050/100 NF C ADV3
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 100000 h at 25 °C
  • Luminaire input power*:38 W Power factor = 0.95
  • Dimming:PROG
  • LED
  • GLedReP
  • IK08
  • IP66
  • Coastal_C5
  • LLedReP
  • RCM
  • SC1 - Protection Class 1
  • Ta-25-50
