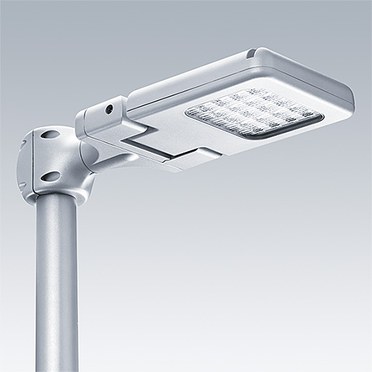

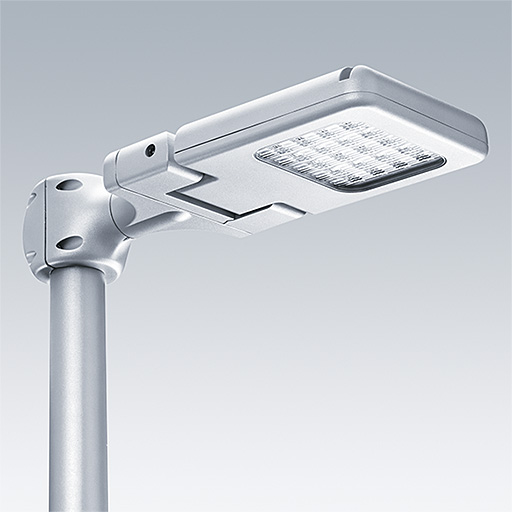

Olsys Street
Versatile and sober street lantern employing a state-of-the-art LED engine for performance and efficiency
- State-of-the-art LED engine in line with EN13201 and European recommendations (ULOR 0%, above 70lm/W in 4000K) to cover projects up to ME3
- Complete with power reduction to reduce energy consumption during the night
- Exceptionally low cost of ownership with an optimised heat management system to provide a lifetime up to 80,000 hours (L70, 25°) without dimming
- Discreet design is coordinated with Olsys Area luminaires and available with a wide choice of mounting types and column packages
Materials and Finish
Body: die-cast aluminium (AS9U), standard corrosion class: C3,
powder coated silver grey 9006 finish
Enclosure: size 1 clear UV stabilised PC
size 2: tempered glass
Optics: size 1 PC, size 2 micro reflectors in highly reflective anodised aluminium
Screws: stainless steel
Brackets and mounting accessories: aluminium
Installation and Mounting
Fitting and mounting accessories delivered sperately.
Product supplied pre-wired with connector
Recommended mounting heights:
Olsys Street 1: 4m
Olsys Street 2 : 6 to 8m
Coordinated columns and brackets: cylindro-conical or curved
Access to gear (replaceable) via 4 screws from the canopy
Suitable for ambient temperature range -30 to 50°C
Specification
To specify state:
IP66 LED street lantern with 24/45/70/90W (up to 7000Llm) LED packages, powder coated silver grey 9006, integrated dimming system and coordinated decorative columns and brackets.
As Thorn Olsys Street.
▼ Olsys 1 street
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
OLSYS1 12L70 730 CL1 BP5 STR | 28 | 3160 | LED | 2.90 | 96633538 | ||||
OLSYS1 12L70 730 CL2 BP5 STR | 28 | 3160 | LED | 2.90 | 96633537 | ||||
OLSYS1 12L70 740 CL1 BP5 STR | 28 | 3315 | LED | 2.90 | 96633536 | ||||
OLSYS1 12L70 740 CL2 BP5 STR | 28 | 3315 | LED | 2.90 | 96633535 |
▼ Olsys 1 street, mounting accessories
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
OLSYS1 BRA 500MM MTP | 3.90 | 96262300 | |||||||
OLSYS1 BRx2 1000MM MTP | 6.90 | 96262301 | |||||||
OLSYS1 MTP 60/76 | 1.40 | 96262298 | |||||||
OLSYS1 MTP 60/76 x2 | 2.10 | 96262299 |
▼ Olsys 2 street
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
OLSYS2 36L70 730 CL1 BP8 STR | 78 | 9895 | LED | 8.75 | 96633550 | ||||
OLSYS2 36L70 730 CL2 BP8 STR | 78 | 9895 | LED | 8.75 | 96633549 | ||||
OLSYS2 36L70 740 CL1 BP8 STR | 78 | 10375 | LED | 8.75 | 96633548 | ||||
OLSYS2 36L70 740 CL2 BP8 STR | 78 | 10375 | LED | 8.75 | 96633547 |
▼ Olsys 2 street, mounting accessories
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
OLSYS2 BRA 500MM MTP | 5.30 | 96262306 | |||||||
OLSYS2 BRx2 1000MM MTP | 10.00 | 96262307 | |||||||
OLSYS2 MLE 60MA | 2.60 | 96262303 | |||||||
OLSYS2 MTP 60/76 | 2.90 | 96262304 | |||||||
OLSYS2 MTP 60/76 x2 | 5.00 | 96262305 | |||||||
OLSYS2 MWA STR | 0.60 | 96267967 |
