  • Recuvo B — RECUVO B 8500-940 HFI L1000

Recuvo B / RECUVO B 8500-940 HFI L1000

96652625

▼ Data Sheet

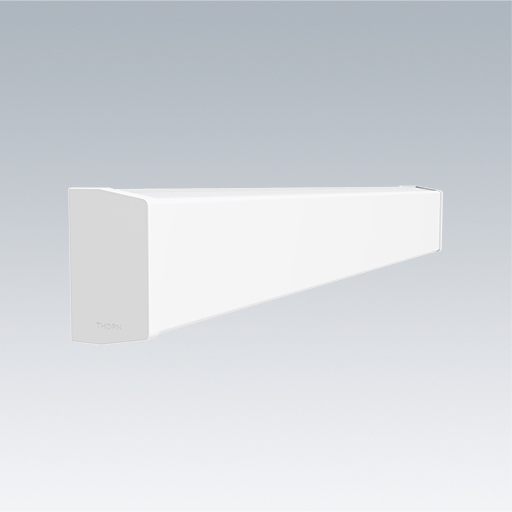

High output bedhead luminaire for hospital ward lighting. Class I electrical, Impact strength: IK08, IP44. Electronic, DALI-2 dimmable control gear. 2x DALI2 drivers. Luminaire made of aluminium, powder coated in white. Smooth radiused surfaces to facilitate cleaning and reduction of bacteria traps. Diffusers: polycarbonate. Independently controllable/dimmable direct and indirect light. Complete with 4000K LED for both direct and indirect component. Compliant with Cyanosis observation lighting requirements COI<3.3. Colour rendering Ra>90 (indirect), Ra>95 (direct).

Dimensions: 1004 x 83 x 135 mm
Luminaire input power: 79.2 W
Total luminous flux: 7860 lm
Luminaire efficacy: 105 lm/W
Weight: 4.2 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:8355 lm
  • Luminaire efficacy*:105 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Ballast:1x HFI*
  • Luminaire input power*:79.2 W Power factor = 0.95
  • Dimming:Dali2Dim
  • LED
  • IK08
  • IP44
  • RCM
  • SC1 - Protection Class 1
  • Ta = -20 to +45
