Recuvo B

  • Recuvo B
  • Recuvo B

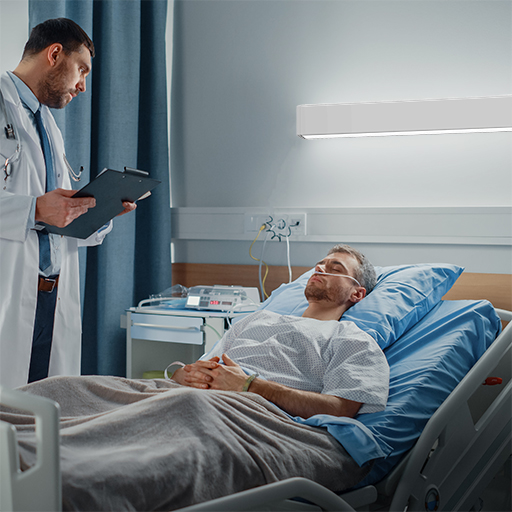

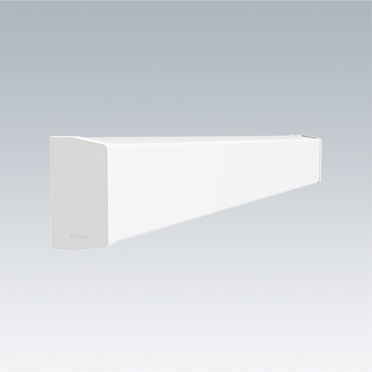

Bedhead luminaire with independent control of both direct and indirect light.

  • High output bedhead luminaire with low glare for hospital ward lighting
  • Smooth radiused surfaces and IP44 rating to facilitate cleaning and reduction of bacteria traps
  • Direct/Indirect (20/80%) with asymmetric light distribution which can provide the various required lux levels for general ward lighting, patient reading over bedhead/pillow, general nursing and examination over the bed
  • Efficient optical system for light control and reduced glare
  • High quality light output with overall CRI>90 and COI<3.3
  • Independently controllable/dimmable direct and indirect light by DALI (using 2 x Tridonic DALI2 drivers)

Materials and Finish

Housing: aluminium (body and end-caps), powder coated white.
Diffusers: Polycarbonate

Installation and Mounting

Wall mounted with recommended mounting height 1.8m for typical 2.7m ceiling heights.
Simple one-man installation with two parts install:
- secure back plate with gear tray to wall;
- use lanyards and quick fix connectors to connect light engine to gear tray;
- secure light engine to back plate by tilting into position and securing with safety screws on bottom of light engine.

Specification

To specify state:
LED bedhead luminaire with independent control of both direct and indirect light using DALI (using 2x Tridonic DALI2 drivers). Complies with LG2: Lighting for Healthcare (Ward Lighting). Smooth radiused surfaces and IP44 rating to facilitate cleaning and reduction of bacteria traps. Luminaire output 8500lm. Direct/Indirect split (20%/80%), IK08, MacAdam 3, L80 50000h at 25°C. Colour rendering Ra>90 (indirect), Ra>95 (direct). Compliant with Cyanosis observation lighting requirements COI<3.3.
As Thorn Recuvo B

  • New Product
New Product
LumExpress Product
eControl Product

Recuvo B

Description   TypeWt (kg)SAP Code
RECUVO B 8500-940 HFI L1000LED4.2096652625
