  • Novaline Style — NOVS S 1900-840 DI HF BK

Novaline Style / NOVS S 1900-840 DI HF BK

96635598

▼ Data Sheet

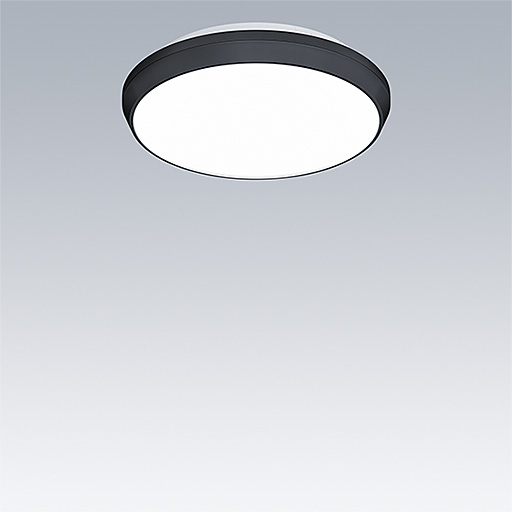

Decorative circular luminaire with small body. Low indirect component for wall and ceiling illumination. Electronic, fixed output control gear. Aesthetic trim of the luminaire made of polycarbonate in black. Diffuser: opal polycarbonate. Class II electrical, IP54. Complete with 4000K LED.

Dimensions: Ø320 x 69 mm
Luminaire input power: 13.2 W
Luminaire luminous flux: 1900 lm
Luminaire efficacy: 144 lm/W
Weight: 1.66 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1900 lm
  • Luminaire efficacy*:144 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000693 LC 17W 250-700mA flexC C EXC
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:13.2 W Power factor = 0.92
  • Dimming:FO
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • Total harmonic distortion (THD):8.00 %
  • LED
  • D
  • GLedReP
  • 850°
  • Halogenfree
  • IK08
  • IP54
  • LLedReP
  • RCM
  • RG1
  • RoHs
  • SC2 - Protection Class 2
  • Ta= -15 to +25
  • UKCA

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
