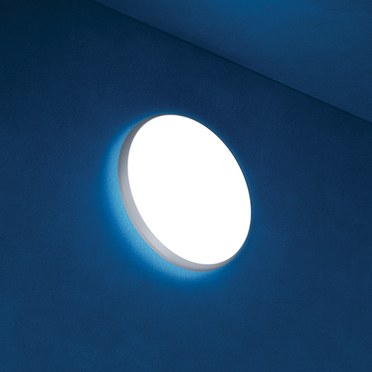

Novaline Style
Contemporary versatility and functionality combined with elegant design, for lounge as well as for circulation areas
- Slim design available in three sizes, with black, white and silver bezels
- Available also with slight indirect light, ensuring comfort and uniformity
- Easy and simple to install, with a quick fix mounting system to optimize installation timings
- Sealed to IP54 and rated IK08 for a high degree of protection
- ADDITIONAL OPTIONS ARE AVAILABLE: DALI Dimmable, Emergency (E3, E3D), Bluetooth control, and different sensors. See myProduct for configuration options.
Materials and Finish
Body: polycarbonate in white, black or silver
Diffuser: opal polycarbonate
Installation and Mounting
Suitable for installation directly on walls or ceilings. Easy and simple to install, with a quick fix mounting system to optimize installation timing.
Specification
To specify state:
Elegant, slim, functional, and well-protected luminaire for installation on walls and ceilings. The elegant shape, with a height of only 69mm, is available in three dimensions (Ø320, Ø397mm & 497mm ), in white, black, or silver bezel, each with 2 different lumen packages, in warm white (3000K) and cool white (4000K), CRI 80. Diffuse lighting distribution, also available with slight indirect lighting, generating both comfort and uniformity. IP54 and IK08 rated, ensuring a high level of protection. Lifetime: 50 000 hours L80. The emergency versions, E3 (3 hours manual test) and E3D (3 hours self/addressable test) come with a Lithium ION battery with 3 levels of protection and 3 years warranty. Available also with DALI, basicDIM, Microwave Sensor (wired Master/Slave), Bluetooth and mobile apps.
As Thorn Novaline Style.
As Thorn Novaline Style.
▼ Novaline Style S
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
NOVS S 1400-840 DI HF BK | 10 | 1400 | LED | 1.68 | 96635517 | ||||
NOVS S 1400-840 DI HF WH | 10 | 1400 | LED | 1.66 | 96635313 | ||||
NOVS S 1900-840 DI HF BK | 13 | 1900 | LED | 1.66 | 96635598 | ||||
NOVS S 1900-840 DI HF WH | 13 | 1900 | LED | 1.66 | 96635314 |
▼ Novaline Style S, dimmable
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
NOVS S 1400-830 DI HFI WH | LED | 1.68 | 96635521 | ||||||
NOVS S 1400-840 DI HFI BK | LED | 1.68 | 96635533 | ||||||
NOVS S 1400-840 DI HFI SR | LED | 1.68 | 96635528 | ||||||
NOVS S 1400-840 DI HFI WH | LED | 1.68 | 96635516 | ||||||
NOVS S 1900-830 DI HFI WH | LED | 1.68 | 96635522 | ||||||
NOVS S 1900-840 DI HFI BK | LED | 1.68 | 96635534 | ||||||
NOVS S 1900-840 DI HFI SR | LED | 1.68 | 96635529 | ||||||
NOVS S 1900-840 DI HFI WH | LED | 1.68 | 96635518 |
▼ Novaline Style S, emergency
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
NOVS S 1900-840 DI HF E3 WH | LED | 1.94 | 96635527 | ||||||
NOVS S 1900-840 DI HFI E3D WH | LED | 1.96 | 96635526 |
▼ Novaline Style M
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
NOVS M 2500-840 DI HF WH | LED | 2.12 | 96635315 | ||||||
NOVS M 3500-840 DI HF WH | LED | 2.12 | 96635316 |
▼ Novaline Style M, dimmable
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
NOVS M 2500-830 DI HFI WH | LED | 2.14 | 96635523 | ||||||
NOVS M 2500-840 DI HFI BK | LED | 2.14 | 96635535 | ||||||
NOVS M 2500-840 DI HFI SR | LED | 2.14 | 96635530 | ||||||
NOVS M 2500-840 DI HFI WH | LED | 2.14 | 96635519 | ||||||
NOVS M 3500-830 DI HFI WH | LED | 2.14 | 96635524 | ||||||
NOVS M 3500-840 DI HFI BK | LED | 2.14 | 96635536 | ||||||
NOVS M 3500-840 DI HFI SR | LED | 2.14 | 96635531 | ||||||
NOVS M 3500-840 DI HFI WH | LED | 2.14 | 96635354 |
▼ Novaline Style M, emergency
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
NOVS M 2500-840 DI HF E3 WH | LED | 2.40 | 96635319 | ||||||
NOVS M 3500-840 DI HF E3 WH | LED | 2.40 | 96635361 | ||||||
NOVS M 3500-840 DI HFI E3D WH | LED | 2.42 | 96635362 |
▼ Novaline Style L
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
NOVS L 4000-840 DI HF WH | LED | 2.87 | 96635317 |
▼ Novaline Style L, dimmable
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
NOVS L 4000-830 DI HFI WH | LED | 2.89 | 96635525 | ||||||
NOVS L 4000-840 DI HFI BK | LED | 2.89 | 96635549 | ||||||
NOVS L 4000-840 DI HFI SR | LED | 2.89 | 96635532 | ||||||
NOVS L 4000-840 DI HFI WH | LED | 2.89 | 96635520 | ||||||
NOVS L 5000-830 DI HFI WH | LED | 2.89 | 96635426 | ||||||
NOVS L 5000-840 DI HFI BK | LED | 2.89 | 96635429 | ||||||
NOVS L 5000-840 DI HFI SR | LED | 2.89 | 96635363 | ||||||
NOVS L 5000-840 DI HFI WH | LED | 2.87 | 96635318 |
▼ Novaline Style L, emergency
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
NOVS L 5000-840 DI HFI E3D WH | LED | 3.17 | 96635430 |
▼ Novaline Style accessories
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
NOVS M/L SUSP SET AP1 WH | 0.00 | 96635684 | |||||||
NOVS M/L SUSP SET AP2 WH | 0.00 | 96635685 | |||||||
NOVS M/L SUSP SET AST2 WH | 0.85 | 96635680 | |||||||
NOVS M/L SUSP SET AST4 WH | 0.87 | 96635681 | |||||||
NOVS S SUSP SET AP1 WH | 0.00 | 96635682 | |||||||
NOVS S SUSP SET AP2 WH | 0.00 | 96635683 |
