  • Katona — KAT SQ 1000-840 HF

Katona / KAT SQ 1000-840 HF

96629368

▼ Data Sheet

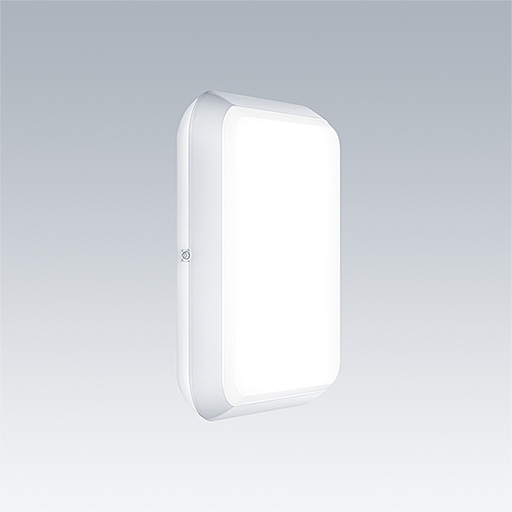

A very slim, square functional LED luminaire. Fixed output LED driver. Body: polycarbonate. Diffuser: opal polycarbonate. Class II electrical, IP65, IK10. Complete with 4000K LED. Suitable for direct mounting to wall or ceiling. Loop-in, loop-out is possible for cables up to 2.5mm². BESA compatible.

Dimensions: 277 x 277 x 58 mm
Luminaire input power: 8.3 W
Luminaire luminous flux: 1000 lm
Luminaire efficacy: 120 lm/W
Weight: 0.96 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1000 lm
  • Luminaire efficacy*:120 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 87501081 LC 10W 150-250mA flexC SC SNC4
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 35 °C
  • Luminaire input power*:8.3 W Power factor = 0.91
  • Dimming:FIX
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • LED
  • D
  • Food
  • GLedReP
  • 850°
  • IK10
  • IP65
  • LLedNr
  • RCM
  • SC2 - Protection Class 2
  • Pic_Ta-15_35
