  • Katona — KAT RD SE 1200-840 MWS

Katona / KAT RD SE 1200-840 MWS

96632486

▼ Data Sheet

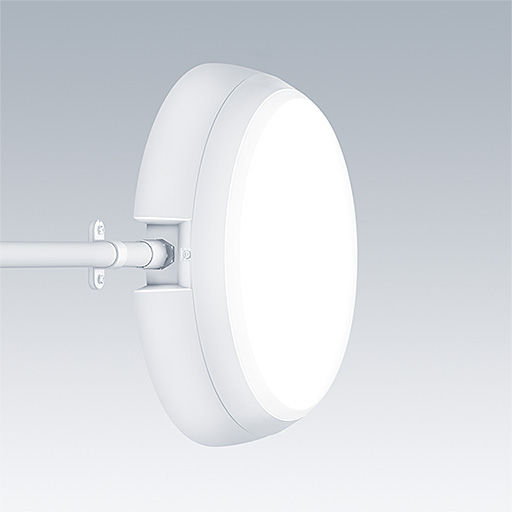

A round functional LED luminaire with deep body for side entry wiring capability, can be used with up to Ø20mm surface mounted conduit. Fixed output LED driver. Body: polycarbonate. Diffuser: opal polycarbonate. Class II electrical, IP66, IK10. With integral motion sensor for on/off control. Complete with 4000K LED. Suitable for direct mounting to wall or ceiling. Loop-in, loop-out is possible for cables up to 2.5mm². BESA compatible.

Dimensions: Ø328 x 84 mm
Luminaire input power: 11.7 W
Luminaire luminous flux: 1250 lm
Luminaire efficacy: 107 lm/W
Weight: 0.05 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1250 lm
  • Luminaire efficacy*:107 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 87501082 LC 17/250-400/42 flexC SC SNC4
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 35 °C
  • Luminaire input power*:11.7 W Power factor = 0.91
  • Dimming:FIX
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • LED
  • D
  • Food
  • GLedReP
  • 850°
  • IK10
  • IP66
  • LLedNr
  • RCM
  • SC2 - Protection Class 2
  • Pic_Ta-15_35
