Prisma

  • Prisma
  • Prisma

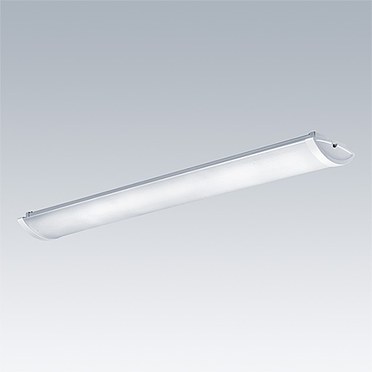

Slim LED luminaire with curved prismatic diffuser for surface mounting

  • Through wiring (TW) variants available
  • Robust and IP44 sealed housing extends applications to canteens, kitchens, laundry rooms, garages etc.
  • Curved frosted (FR) prismatic diffuser for more visual comfort (wide light distribution, reduced glare)
  • Highly efficient LED variants (up to 120 lm/W), sensor variants for even more energy saving
  • Available in two lengths (600mm / 1200mm)

Materials and Finish

Body: Pre-painted white 0.7mm galvanised steel.
Endcaps: Shockproof ASA plastic, white.
Diffuser: Prismatic acrylic.

Installation and Mounting

Keyhole fixing positions Ø14mm for direct mounting to ceiling, wall or via bracket. Fixing centres: 500mm (600mm fixture). Two cable entries Ø19mm in the centre of the body and a knockout hole in the endcaps. Grommets included. Cable capacity 3 x 2 x 2.5mm².

Specification

To specify state:
Slim LED luminaire with curved frosted prismatic diffuser for surface mounting. Single and through wiring variants. Robust and IP44 sealed housing.
As Thorn Prisma.

New Product
LumExpress Product
eControl Product

▼ Prisma

Description   TypeWt (kg)SAP Code
PRISMA LED3000-840 HF FR L600LED1.5096630824
PRISMA LED4400-830 HF FR L1200LED2.7296630831
PRISMA LED4400-840 HF FR L1200LED2.7296630825
PRISMA LED6200-830 HF FR L1200LED2.7296630832
PRISMA LED6200-840 HF FR L1200LED2.7296630826

▼ Prisma, through wired

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
PRISMA LED3000-830 HF FR L600 TW272850LED1.5296630833
PRISMA LED3000-840 HF FR L600 TW273100LED1.5296630827
PRISMA LED4400-830 HF FR L1200 TW353900LED2.8196630834
PRISMA LED4400-840 HF FR L1200 TW354250LED2.8196630828
PRISMA LED6200-830 HF FR L1200 TW545700LED2.8196630835
PRISMA LED6200-840 HF FR L1200 TW546200LED2.8196630829

▼ Prisma, dimmable

Description   TypeWt (kg)SAP Code
PRISMA LED3000-840 HFIX FR L600LED1.5096630836
PRISMA LED4400-830 HFIX FR L1200LED2.7296630843
PRISMA LED4400-840 HFIX FR L1200LED2.7296630837
PRISMA LED6200-830 HFIX FR L1200LED2.7296630844
PRISMA LED6200-840 HFIX FR L1200LED2.7296630838

▼ Prisma, dimmable, through wired

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
PRISMA LED3000-830 HFIX FR L600 TW545700LED1.5296630845
PRISMA LED3000-840 HFIX FR L600 TW273100LED1.5296630839
PRISMA LED4400-830 HFIX FR L1200 TW353900LED2.8196630846
PRISMA LED4400-840 HFIX FR L1200 TW354250LED2.8196630840
PRISMA LED6200-830 HFIX FR L1200 TW545700LED2.8196630847
PRISMA LED6200-840 HFIX FR L1200 TW546200LED2.8196630841

▼ Prisma, sensor versions

Description   TypeWt (kg)SAP Code
PRISMA LED4400-830 HF FR MWS L1200LED2.7396630848
PRISMA LED4400-840 HF FR MWS L1200LED2.7396630849
