  • Novaline Style — NOVS M 3500-840 DI HF E3 WH

Novaline Style / NOVS M 3500-840 DI HF E3 WH

96635361

▼ Data Sheet

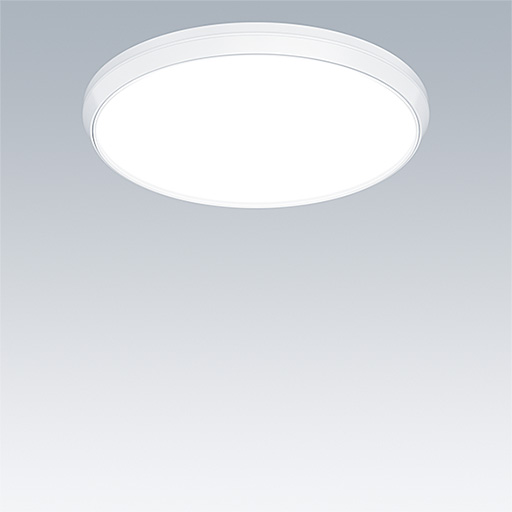

Decorative circular luminaire with medium body. Low indirect component for wall and ceiling illumination. Electronic, fixed output control gear with 3 hour, manual test, emergency lighting circuit. Aesthetic trim of the luminaire made of polycarbonate in white. Diffuser: opal polycarbonate. Class II electrical, IP54. Complete with 4000K LED.

Dimensions: Ø397 x 69 mm
Luminaire input power: 24.6 W
Luminaire luminous flux: 3500 lm
Luminaire efficacy: 142 lm/W
Weight: 2.4 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3500 lm
  • Total emergency luminous flux:350 lm
  • Luminaire efficacy*:142 lm/W
  • Colour Rendering Index min.:80
  • Ballast 1:1 x 28000695 LC 45W 500-1400mA flexC C EXC
  • Ballast 2:1 x 89800576 EM converterLED BASIC 203 MH/LiFePO4 50V
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:24.6 W Power factor = 0.89
  • Charging power:1 W
  • Dimming:FO
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • LED
  • D
  • GLedReP
  • 850°
  • Halogenfree
  • IK08
  • IP54
  • LLedReP
  • RCM
  • RG1
  • RoHs
  • SC2 - Protection Class 2
  • Ta = 0 to +25

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
