  • Glacier II — GLAC2 S LED2 1000-830 HFIX EC BK GL OP

Glacier II / GLAC2 S LED2 1000-830 HFIX EC BK GL OP

96629700

▼ Data Sheet

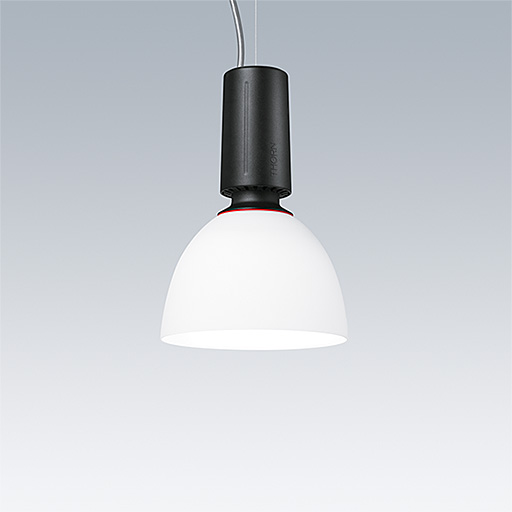

A modern and efficient LED pendant luminaire. DALI dimmable control gear suitable for central battery emergency installations. Housing: die-cast aluminium with satin black finish. Reflector: opal glass with easy bayonet mount connection to housing. Class I electrical, IP20. Suspended via adjustable quick-lock 2.5m single wire suspension (supplied). Pre-wired with braided, flame retardent silicone cable, 5 x 0.75mm². Complete with 3000K LED

Dimensions: Ø250/100 x 370 mm
Luminaire input power: 8.5 W
Weight: 2.5 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1000 lm
  • Luminaire efficacy*:118 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000663 LCA 10W 150-400mA one4all C PRE
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:8.5 W Power factor = 0.96
  • Dimming:DA2 dimmable to 1%
  • Maintenance category CIE 97:C - Closed Top Reflector
  • LED
  • GLedReP
  • IP20
  • LLedNr
  • RCM
  • SC1 - Protection Class 1
  • Ta=25

▼ Photometry

Photometric configuration
