  • Glacier II — GLAC2 L LED3 3000-830 HFIX EC GY AL GY

Glacier II / GLAC2 L LED3 3000-830 HFIX EC GY AL GY

96632398

▼ Data Sheet

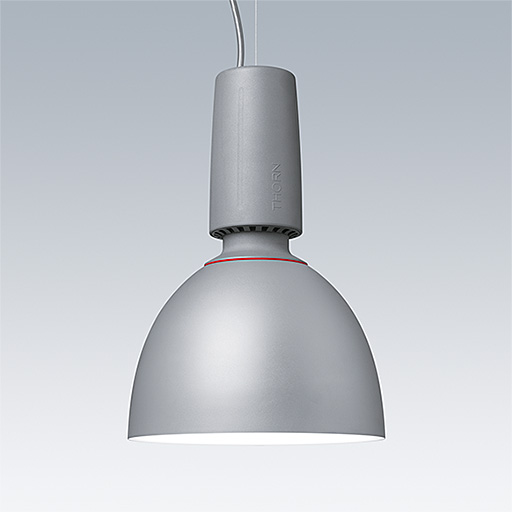

A modern and efficient LED pendant luminaire. DALI dimmable control gear suitable for central battery emergency installations. Housing: die-cast aluminium with satin grey finish. Reflector: grey aluminium with easy bayonet mount connection to housing. Class I electrical, IP20. Suspended via adjustable quick-lock 2.5m single wire suspension (supplied). Pre-wired with braided, flame retardent silicone cable, 5 x 0.75mm². Complete with 3000K LED

Dimensions: Ø340/140 x 485 mm
Luminaire input power: 27 W
Weight: 4.8 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2800 lm
  • Luminaire efficacy*:104 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000666 LCA 45W 500-1400mA one4all C PRE
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:27 W Power factor = 0.96
  • Standby Power*:0.2 W
  • Dimming:DA2 dimmable to 1%
  • Maintenance category CIE 97:C - Closed Top Reflector
  • LED
  • GLedReP
  • IP20
  • LLedNr
  • SEMKO
  • RCM
  • SC1 - Protection Class 1
  • Ta=25

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
