Glacier II

Modern and efficient decorative LED pendant luminaire with high lumen packages

High performance (91-124lm/W) decorative luminaire offers an efficient alternative to traditional HID (up to 150W) pendants
Available in two sizes and two colours
A choice of 4 reflectors to fit a wide range of applications
Ceiling rose in same design to complete the look
Contus trunking compatibility through optional adapter accessory

Materials and Finish

Housing: die-cast aluminium with satin grey/black finish
Reflector: polycarbonate prismatic, glass prismatic, opal glass or grey/black spun aluminium
Suspension wire: braided steel
Ceiling rose (to be ordered separately): die-cast aluminium with satin grey/black finish and white plastic
Contus adapter (to be ordered separately): pre-coated roll form steel, white (similar to RAL9016)

Installation and Mounting

Suspension: adjustable quick-lock 2.5m single wire suspension (supplied). Similar length of pre-installed braided flame retardant silicon cable 5x0.75mm² (6x0.75mm² for E3). Ceiling rose option (ordered separately) 2x5x2.5mm² terminal block.
Contus trunking: using the Contus adapter accessory (ordered separately).

Specification

To specify state:
Large decorative LED pendant in two sizes with die cast aluminium housing on single wire suspension. With polycarbonate prismatic/glass prismatic/opal glass/grey/black spun aluminium reflector. Lumen output from 3000-9500 lumens, efficacy 91-124lm/W, CRI>80.
As Thorn Glacier II LED.

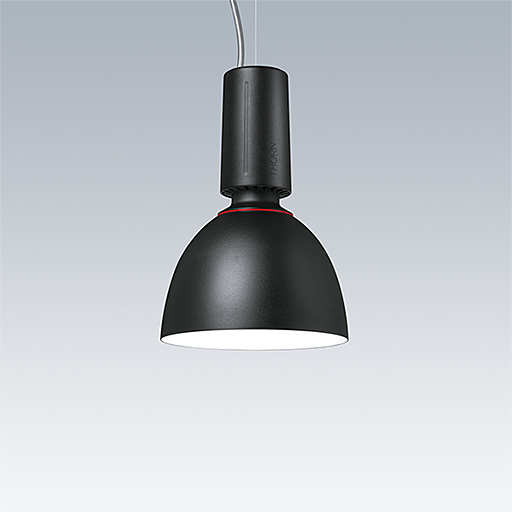

▼ Glacier II, aluminium reflector

Description	Luminaire power (W)	Luminaire output (lm)	Type	Wt (kg)	SAP Code
GLAC2 L LED2 7800-830 HFIX EC BK AL BK ecoCALC DIALux RELUX	74	7550	LED	4.80	96632405
GLAC2 L LED2 7800-830 HFIX EC GY AL GY ecoCALC DIALux RELUX	74	7550	LED	4.80	96632406
GLAC2 L LED2 7800-840 HFIX EC BK AL BK ecoCALC DIALux RELUX	74	7800	LED	4.80	96632407
GLAC2 L LED2 7800-840 HFIX EC GY AL GY ecoCALC DIALux RELUX	74	7800	LED	4.80	96632408
GLAC2 L LED3 3000-830 HFIX EC BK AL BK ecoCALC DIALux RELUX	27	2800	LED	4.80	96632397
GLAC2 L LED3 3000-830 HFIX EC GY AL GY ecoCALC DIALux RELUX	27	2800	LED	4.80	96632398
GLAC2 L LED3 3000-840 HFIX EC BK AL BK ecoCALC DIALux RELUX	27	2900	LED	4.80	96632399
GLAC2 L LED3 3000-840 HFIX EC GY AL GY ecoCALC DIALux RELUX	27	2900	LED	4.80	96632400
GLAC2 L LED3 5000-830 HFIX EC BK AL BK ecoCALC DIALux RELUX	45	4800	LED	4.80	96632401
GLAC2 L LED3 5000-830 HFIX EC GY AL GY ecoCALC DIALux RELUX	45	4800	LED	4.80	96632402
GLAC2 L LED3 5000-840 HFIX EC BK AL BK ecoCALC DIALux RELUX	45	5000	LED	4.80	96632403
GLAC2 L LED3 5000-840 HFIX EC GY AL GY ecoCALC DIALux RELUX	45	5000	LED	4.80	96632404
GLAC2 S LED2 1000-830 HFIX EC BK AL BK ecoCALC DIALux RELUX	8	825	LED	1.80	96629701
GLAC2 S LED2 1000-830 HFIX EC GY AL GY ecoCALC DIALux RELUX	8	825	LED	1.80	96629698
GLAC2 S LED2 1000-840 HFIX EC BK AL BK ecoCALC DIALux RELUX	8	850	LED	1.80	96629707
GLAC2 S LED2 1000-840 HFIX EC GY AL GY ecoCALC DIALux RELUX	8	850	LED	1.80	96629704

▼ Glacier II, aluminium reflector, basicDIM

Description	Luminaire power (W)	Luminaire output (lm)	Type	Wt (kg)	SAP Code
GLAC2 L LED2 7800-830 BC EC BK AL BK ecoCALC DIALux RELUX	74	7550	LED	4.80	96632150
GLAC2 L LED2 7800-830 BC EC GY AL GY ecoCALC DIALux RELUX	74	7550	LED	4.80	96632151
GLAC2 L LED2 7800-840 BC EC BK AL BK ecoCALC DIALux RELUX	74	7800	LED	4.80	96632152
GLAC2 L LED2 7800-840 BC EC GY AL GY ecoCALC DIALux RELUX	74	7800	LED	4.80	96632153
GLAC2 L LED3 3000-830 BC EC BK AL BK ecoCALC DIALux RELUX	27	2800	LED	4.80	96632142
GLAC2 L LED3 3000-830 BC EC GY AL GY ecoCALC DIALux RELUX	27	2800	LED	4.80	96632143
GLAC2 L LED3 3000-840 BC EC BK AL BK ecoCALC DIALux RELUX	27	2900	LED	4.80	96632144
GLAC2 L LED3 3000-840 BC EC GY AL GY ecoCALC DIALux RELUX	27	2900	LED	4.80	96632145
GLAC2 L LED3 5000-830 BC EC BK AL BK ecoCALC DIALux RELUX	45	4800	LED	4.80	96632146
GLAC2 L LED3 5000-830 BC EC GY AL GY ecoCALC DIALux RELUX	45	4800	LED	4.80	96632147
GLAC2 L LED3 5000-840 BC EC BK AL BK ecoCALC DIALux RELUX	45	5000	LED	4.80	96632148
GLAC2 L LED3 5000-840 BC EC GY AL GY ecoCALC DIALux RELUX	45	5000	LED	4.80	96632149

▼ Glacier II, prismatic glass reflector

Description	Luminaire power (W)	Luminaire output (lm)	Type	Wt (kg)	SAP Code
GLAC2 L LED2 9500-830 HFIX EC BK GL PR ecoCALC DIALux RELUX	74	9200	LED	6.80	96632417
GLAC2 L LED2 9500-830 HFIX EC GY GL PR ecoCALC DIALux RELUX	74	9200	LED	6.80	96632418
GLAC2 L LED2 9500-840 HFIX EC BK GL PR ecoCALC DIALux RELUX	74	9500	LED	6.80	96632419
GLAC2 L LED2 9500-840 HFIX EC GY GL PR ecoCALC DIALux RELUX	74	9500	LED	6.80	96632420
GLAC2 L LED3 3500-830 HFIX EC BK GL PR ecoCALC DIALux RELUX	27	3400	LED	6.80	96632409
GLAC2 L LED3 3500-830 HFIX EC GY GL PR ecoCALC DIALux RELUX	27	3400	LED	6.80	96632410
GLAC2 L LED3 3500-840 HFIX EC BK GL PR ecoCALC DIALux RELUX	27	3500	LED	6.80	96632411
GLAC2 L LED3 3500-840 HFIX EC GY GL PR ecoCALC DIALux RELUX	27	3500	LED	6.80	96632412
GLAC2 L LED3 6000-830 HFIX EC BK GL PR ecoCALC DIALux RELUX	45	5750	LED	6.80	96632413
GLAC2 L LED3 6000-830 HFIX EC GY GL PR ecoCALC DIALux RELUX	45	5750	LED	6.80	96632414
GLAC2 L LED3 6000-840 HFIX EC BK GL PR ecoCALC DIALux RELUX	45	6000	LED	6.80	96632415
GLAC2 L LED3 6000-840 HFIX EC GY GL PR ecoCALC DIALux RELUX	45	6000	LED	6.80	96632416

▼ Glacier II, prismatic glass reflector, basicDIM

Description	Luminaire power (W)	Luminaire output (lm)	Type	Wt (kg)	SAP Code
GLAC2 L LED2 9500-830 BC EC BK GL PR ecoCALC DIALux RELUX	74	9200	LED	6.80	96632162
GLAC2 L LED2 9500-830 BC EC GY GL PR ecoCALC DIALux RELUX	74	9200	LED	6.80	96632163
GLAC2 L LED2 9500-840 BC EC BK GL PR ecoCALC DIALux RELUX	74	9500	LED	6.80	96632164
GLAC2 L LED2 9500-840 BC EC GY GL PR ecoCALC DIALux RELUX	74	9500	LED	6.80	96632165
GLAC2 L LED3 3500-830 BC EC BK GL PR ecoCALC DIALux RELUX	27	3400	LED	6.80	96632154
GLAC2 L LED3 3500-830 BC EC GY GL PR ecoCALC DIALux RELUX	27	3400	LED	6.80	96632155
GLAC2 L LED3 3500-840 BC EC BK GL PR ecoCALC DIALux RELUX	27	3500	LED	6.80	96632156
GLAC2 L LED3 3500-840 BC EC GY GL PR ecoCALC DIALux RELUX	27	3500	LED	6.80	96632157
GLAC2 L LED3 6000-830 BC EC BK GL PR ecoCALC DIALux RELUX	45	5750	LED	6.80	96632158
GLAC2 L LED3 6000-830 BC EC GY GL PR ecoCALC DIALux RELUX	45	5750	LED	6.80	96632159
GLAC2 L LED3 6000-840 BC EC BK GL PR ecoCALC DIALux RELUX	45	6000	LED	6.80	96632160
GLAC2 L LED3 6000-840 BC EC GY GL PR ecoCALC DIALux RELUX	45	6000	LED	6.80	96632161

▼ Glacier II, opal glass reflector

Description	Luminaire power (W)	Luminaire output (lm)	Type	Wt (kg)	SAP Code
GLAC2 L LED2 9400-830 HFIX EC BK GL OP ecoCALC DIALux RELUX	74	9100	LED	6.50	96632429
GLAC2 L LED2 9400-830 HFIX EC GY GL OP ecoCALC DIALux RELUX	74	9100	LED	6.50	96632430
GLAC2 L LED2 9400-840 HFIX EC BK GL OP ecoCALC DIALux RELUX	74	9400	LED	6.50	96632431
GLAC2 L LED2 9400-840 HFIX EC GY GL OP ecoCALC DIALux RELUX	74	9400	LED	6.50	96632432
GLAC2 L LED3 3500-830 HFIX EC BK GL OP ecoCALC DIALux RELUX	27	3450	LED	6.50	96632421
GLAC2 L LED3 3500-830 HFIX EC GY GL OP ecoCALC DIALux RELUX	27	3450	LED	6.50	96632422
GLAC2 L LED3 3500-840 HFIX EC BK GL OP ecoCALC DIALux RELUX	27	3550	LED	6.50	96632423
GLAC2 L LED3 3500-840 HFIX EC GY GL OP ecoCALC DIALux RELUX	27	3550	LED	6.50	96632424
GLAC2 L LED3 6000-830 HFIX EC BK GL OP ecoCALC DIALux RELUX	45	5850	LED	6.50	96632425
GLAC2 L LED3 6000-830 HFIX EC GY GL OP ecoCALC DIALux RELUX	45	5850	LED	6.50	96632426
GLAC2 L LED3 6000-840 HFIX EC BK GL OP ecoCALC DIALux RELUX	45	6050	LED	6.50	96632427
GLAC2 L LED3 6000-840 HFIX EC GY GL OP ecoCALC DIALux RELUX	45	6050	LED	6.50	96632428
GLAC2 S LED2 1000-830 HFIX EC BK GL OP ecoCALC DIALux RELUX	8	1000	LED	2.50	96629700
GLAC2 S LED2 1000-830 HFIX EC GY GL OP ecoCALC DIALux RELUX	8	1000	LED	2.50	96629697
GLAC2 S LED2 1000-840 HFIX EC BK GL OP ecoCALC DIALux RELUX	8	1050	LED	2.50	96629706
GLAC2 S LED2 1000-840 HFIX EC GY GL OP ecoCALC DIALux RELUX	8	1050	LED	2.50	96629703

▼ Glacier II, opal glass reflector, basicDIM

Description	Luminaire power (W)	Luminaire output (lm)	Type	Wt (kg)	SAP Code
GLAC2 L LED2 9400-830 BC EC BK GL OP ecoCALC DIALux RELUX	74	9100	LED	6.50	96632174
GLAC2 L LED2 9400-830 BC EC GY GL OP ecoCALC DIALux RELUX	74	9100	LED	6.50	96632175
GLAC2 L LED2 9400-840 BC EC BK GL OP ecoCALC DIALux RELUX	74	9400	LED	6.50	96632176
GLAC2 L LED2 9400-840 BC EC GY GL OP ecoCALC DIALux RELUX	74	9400	LED	6.50	96632177
GLAC2 L LED3 3500-830 BC EC BK GL OP ecoCALC DIALux RELUX	27	3450	LED	6.50	96632166
GLAC2 L LED3 3500-830 BC EC GY GL OP ecoCALC DIALux RELUX	27	3450	LED	6.50	96632167
GLAC2 L LED3 3500-840 BC EC BK GL OP ecoCALC DIALux RELUX	27	3550	LED	6.50	96632168
GLAC2 L LED3 3500-840 BC EC GY GL OP ecoCALC DIALux RELUX	27	3550	LED	6.50	96632169
GLAC2 L LED3 6000-830 BC EC BK GL OP ecoCALC DIALux RELUX	45	5850	LED	6.50	96632170
GLAC2 L LED3 6000-830 BC EC GY GL OP ecoCALC DIALux RELUX	45	5850	LED	6.50	96632171
GLAC2 L LED3 6000-840 BC EC BK GL OP ecoCALC DIALux RELUX	45	6050	LED	6.50	96632172
GLAC2 L LED3 6000-840 BC EC GY GL OP ecoCALC DIALux RELUX	45	6050	LED	6.50	96632173

▼ Glacier II, prismatic polycarbonate reflector

Description	Luminaire power (W)	Luminaire output (lm)	Type	Wt (kg)	SAP Code
GLAC2 L LED2 9300-830 HFIX EC BK PC PR ecoCALC DIALux RELUX	74	9000	LED	5.00	96632441
GLAC2 L LED2 9300-830 HFIX EC GY PC PR ecoCALC DIALux RELUX	74	9000	LED	5.00	96632442
GLAC2 L LED2 9300-840 HFIX EC BK PC PR ecoCALC DIALux RELUX	74	9300	LED	5.00	96632443
GLAC2 L LED2 9300-840 HFIX EC GY PC PR ecoCALC DIALux RELUX	74	9300	LED	5.00	96632444
GLAC2 L LED3 3500-830 HFIX EC BK PC PR ecoCALC DIALux RELUX	27	3400	LED	5.00	96632433
GLAC2 L LED3 3500-830 HFIX EC GY PC PR ecoCALC DIALux RELUX	27	3400	LED	5.00	96632434
GLAC2 L LED3 3500-840 HFIX EC BK PC PR ecoCALC DIALux RELUX	27	3500	LED	5.00	96632435
GLAC2 L LED3 3500-840 HFIX EC GY PC PR ecoCALC DIALux RELUX	27	3500	LED	5.00	96632436
GLAC2 L LED3 6000-830 HFIX EC BK PC PR ecoCALC DIALux RELUX	45	5700	LED	5.00	96632437
GLAC2 L LED3 6000-830 HFIX EC GY PC PR ecoCALC DIALux RELUX	45	5700	LED	5.00	96632438
GLAC2 L LED3 6000-840 HFIX EC BK PC PR ecoCALC DIALux RELUX	45	5950	LED	5.00	96632439
GLAC2 L LED3 6000-840 HFIX EC GY PC PR ecoCALC DIALux RELUX	45	5950	LED	5.00	96632440

▼ Glacier II, prismatic polycarbonate reflector, basicDIM

Description	Luminaire power (W)	Luminaire output (lm)	Type	Wt (kg)	SAP Code
GLAC2 L LED2 9300-830 BC EC BK PC PR ecoCALC DIALux RELUX	74	9000	LED	5.00	96632186
GLAC2 L LED2 9300-830 BC EC GY PC PR ecoCALC DIALux RELUX	74	9000	LED	5.00	96632187
GLAC2 L LED2 9300-840 BC EC BK PC PR ecoCALC DIALux RELUX	74	9300	LED	5.00	96632188
GLAC2 L LED2 9300-840 BC EC GY PC PR ecoCALC DIALux RELUX	74	9300	LED	5.00	96632189
GLAC2 L LED3 3500-830 BC EC BK PC PR ecoCALC DIALux RELUX	27	3400	LED	5.00	96632178
GLAC2 L LED3 3500-830 BC EC GY PC PR ecoCALC DIALux RELUX	27	3400	LED	5.00	96632179
GLAC2 L LED3 3500-840 BC EC BK PC PR ecoCALC DIALux RELUX	27	3500	LED	5.00	96632180
GLAC2 L LED3 3500-840 BC EC GY PC PR ecoCALC DIALux RELUX	27	3500	LED	5.00	96632181
GLAC2 L LED3 6000-830 BC EC BK PC PR ecoCALC DIALux RELUX	45	5700	LED	5.00	96632182
GLAC2 L LED3 6000-830 BC EC GY PC PR ecoCALC DIALux RELUX	45	5700	LED	5.00	96632183
GLAC2 L LED3 6000-840 BC EC BK PC PR ecoCALC DIALux RELUX	45	5950	LED	5.00	96632184
GLAC2 L LED3 6000-840 BC EC GY PC PR ecoCALC DIALux RELUX	45	5950	LED	5.00	96632185

▼ Glacier II Accessories

Description	Wt (kg)	SAP Code
THORN CEILING ROSE BK BK ecoCALC	0.50	96632738
THORN CEILING ROSE BK WH ecoCALC	0.50	96629782
THORN CEILING ROSE GY GY ecoCALC	0.50	96632740
THORN CEILING ROSE GY WH ecoCALC	0.50	96205307
THORN CEILING ROSE WH WH ecoCALC	0.50	96632739
