College C / COLLEGE C 2500-940 L1200 HFI PC CL

96653186

▼ Data Sheet

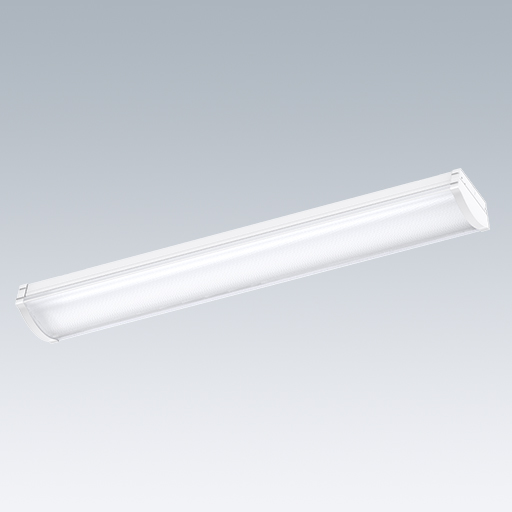

Curved linear LED luminaire. electronic DALI dimmable control gear. Class I electrical, IP40. Body: stamping sheet metal in white. Diffuser: polycarbonate. Can be suspended using wire suspension accessory kit (to be ordered separately). 5 x 2 x 2.5mm² piano key terminal block. Complete with 4000K LED

Dimensions: 1200 x 200 x 96 mm
Luminaire input power: 20.6 W
Weight: 4.04 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2470 lm
  • Luminaire efficacy*:120 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 35 °C
  • Ballast:1x EL
  • Luminaire input power*:20.6 W Power factor = 0.9
  • Dimming:DA2
  • LED
  • 650°
  • IK06
  • IP40
  • RCM
  • SC1 - Protection Class 1
  • Ta = -20 to +40

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
