College C
A range of curved profile linear LED luminaires with prismatic diffusers for surface or suspended mounting
- Clear prismatic diffuser in tough polycarbonate for specific light control and impact resistance
- Rigidly fixed diffuser held in place on polycarbonate end caps for improved diffuser security and vandal/impact resistance
- Sealed to IP40
- Easy removal and replacement of protective gear cover components
- Hinged structure connection between light source cavity and base makes the installation and maintenance convenient and reliable
- Electronic, DALI / DSI digital dimmable control gear or “on-off” gear
Materials and Finish
Body and gear tray: white galvanized prepainted steel
End caps: polycarbonate
Diffuser: precision extruded clear prismatic polycarbonate
Installation and Mounting

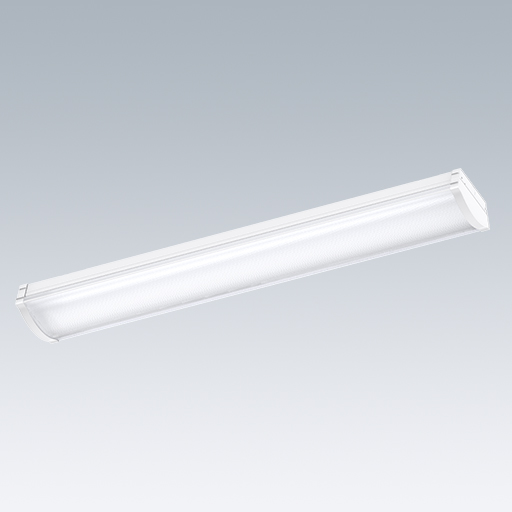

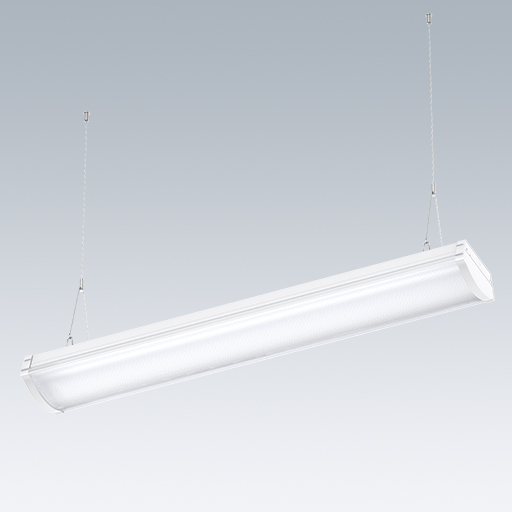

Surface mounted. Cable entry hole in the center of the back spine with optional cable entry through each end cap. Can be suspended using wire suspension accessory kit (to be ordered separately).
DALI/DSI digital dimmable control gear: 5 x 2 x 2.5mm² terminal block supplied for easy and quick looping.
On-off control gear: 3 x 2 x 2.5mm² terminal block supplied for easy and quick looping.
Specification
To specify state:
Surface mounted UGR19 IP40 LED luminaire with curved clear prismatic polycarbonate diffuser retained along its length on end caps employing protected high frequency/dimmable/emergency gear for LEDs for educational lighting.
As Thorn College C
▼ College C, on-off
| Description | Type | Socket | Wt (kg) | SAP Code | |||||
|---|---|---|---|---|---|---|---|---|---|
| COLLEGE C 2500-940 L1200 PC CL | LED | LED | 3.84 | 96653181 | |||||
| COLLEGE C 3700-940 L1200 PC CL | LED | LED | 3.84 | 96653182 | |||||
| COLLEGE C 4400-940 L1500 PC CL | LED | LED | 4.83 | 96653183 |
▼ College C, dimmable
| Description | Type | Socket | Wt (kg) | SAP Code | |||||
|---|---|---|---|---|---|---|---|---|---|
| COLLEGE C 2500-940 L1200 HFI PC CL | LED | LED | 4.04 | 96653186 | |||||
| COLLEGE C 3700-940 L1200 HFI PC CL | LED | LED | 4.04 | 96653187 | |||||
| COLLEGE C 4400-940 L1500 HFI PC CL | LED | LED | 5.03 | 96653188 |
