Home / Products / Indoor Lighting / Spotlights and Track / Sirio Spot / Sirio Spot / SIRIO SPOT LED2000-930-55 STD DIM ZM WH
  • Sirio Spot — SIRIO SPOT LED2000-930-55 STD DIM ZM WH

Sirio Spot / SIRIO SPOT LED2000-930-55 STD DIM ZM WH

96651968

▼ Data Sheet

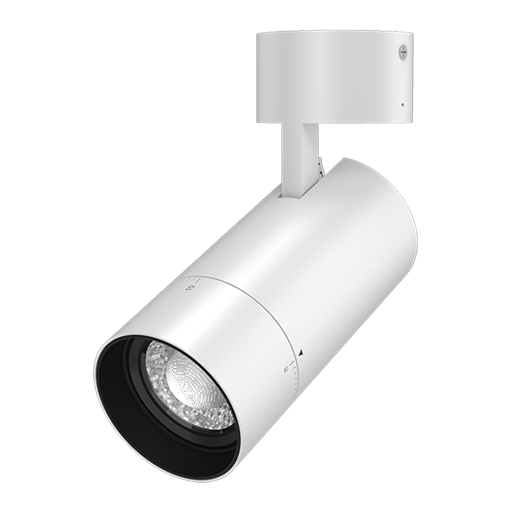

An LED spotlight with the built in ability to adjust its zoom from a spot distribution to a wide flood distribution.Class I electrical, IP20. A die-cast aluminium body and ceiling mounted cable enclosure in a matte white. The Sirio spot surface mounted version maintains its ability to rotate through 350° and tilted up to 90°. Colour rendering Ra >90 and changeable vario colour temperature switch allowing the CCT choice of 3000K, 4000K and 5500K.

Dimensions: Ø80 x 170 mm
Luminaire input power: 24.6 W
Luminaire luminous flux: 1797 lm
Luminaire efficacy: 73 lm/W
Weight: 1 kg

Mode selection
  • Lamp position:3000K
  • Light Source:LED
  • Luminaire luminous flux*:1797 lm
  • Luminaire efficacy*:73 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 30000 h at 25 °C
  • Ballast:1x HFI
  • Luminaire input power*:24.6 W
  • Dimming:On-Board dimmable to 10%
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • IK04
  • IP20
  • RCM
  • SC1 - Protection Class 1
  • Ta=-20°C_to_+40°C

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
