  • Sustain Pro — SU PRO LED3000-940 15X3 AH HFI RFD FP

Sustain Pro / SU PRO LED3000-940 15X3 AH HFI RFD FP

96651789

▼ Data Sheet

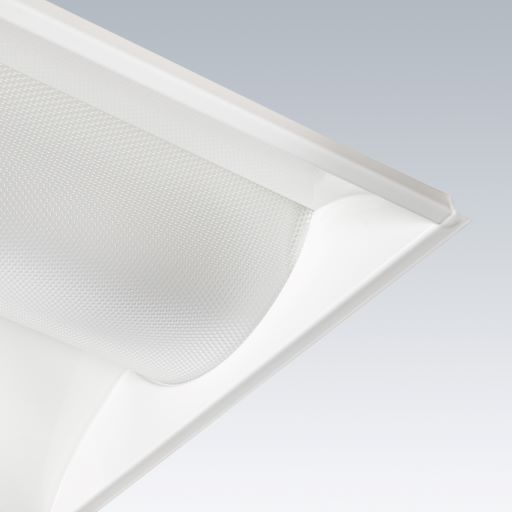

A set back recessed LED luminaire. Electronic, DALI dimmable control gear. Class II electrical. IP20 Impact strength: IK02. Body: white painted steel. Diffuser: dual layer curved microprismatic diffuser within a linear profile. Baffle: aluminium extrusion with return air handling slots and baffles. Fitted with flex and plug. Complete with 4000K LED, Colour Rendering Index min.: 90. COI approved LED.

Dimensions: 1497 x 297 x 80 mm
Luminaire input power: 28.4 W
Luminaire luminous flux: 3130 lm
Luminaire efficacy: 110 lm/W
Weight: 5.1 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3130 lm
  • Luminaire efficacy*:110 lm/W
  • Colour Rendering Index min.:90
  • Ballast:1 x 28000672 LCA 45W 500-1400mA one4all SR PRE
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 54000 h at 25 °C
  • Luminaire input power*:28.4 W
  • Dimming:DaliDim
  • Maintenance category CIE 97:D - Enclosed IP2X
  • LED
  • IK02
  • IP20
  • RCM
  • SC2 - Protection Class 2
  • Ta = 0 to +40

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
