  • Royal Pro IP54 — ROYAL PRO LED4500-940 12X3 HFI IP54 FP

Royal Pro IP54 / ROYAL PRO LED4500-940 12X3 HFI IP54 FP

96649504

▼ Data Sheet

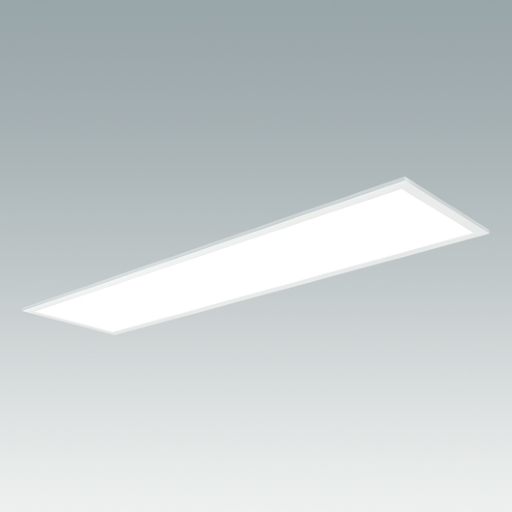

An ultra slim ceiling recessed LED modular luminaire. DALI dimmable LED driver. Body: white painted aluminium frame. Diffuser: High uniformity microprismatic, UGR<19. Suitable for Office, Retail and School applications. Class II electrical, IP54_IP20. Electrical connection: Fitted with flex and plug. Complete with 4000K LED. CRI90+, 2 Step MacAdam LED.

This product has a Cyanosis Observation Index (COI) of less than 3.3, in accordance with AS/NZS 1680.2.5:1997 for hospitals and medical tasks.

Dimensions: 1195 x 295 x 11 mm
Luminaire input power: 41.1 W
Luminaire luminous flux: 4736 lm
Luminaire efficacy: 115 lm/W
Weight: 4 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:4736 lm
  • Luminaire efficacy*:115 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):2
  • Rated median useful life*:L90 50000 h at 25 °C
  • Ballast:1x LED_DRV Tridonic LC
  • Luminaire input power*:41.1 W Power factor = 0.91
  • Dimming:DaliDim
  • LED
  • IP54_IP20
  • RCM
  • RoHs
  • SC2 - Protection Class 2
  • Ta = -20 to +45
