  • Royal Modular — ROYAL MOD LED2700-940 12X3 AH FP

Royal Modular / ROYAL MOD LED2700-940 12X3 AH FP

96650523

▼ Data Sheet

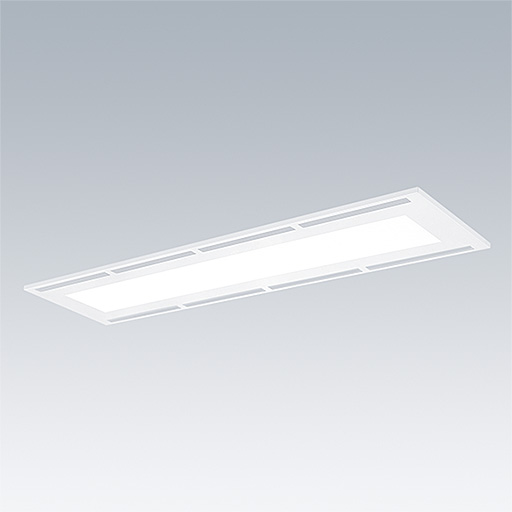

An LED recessed luminaire, with air-handling functionality. Electronic, fixed output control gear. Class lI electrical, IP40. Body: painted steel. Diffuser: MicroPrismatic. Fitted with flex and plug. Complete with 4000K LED, Colour Rendering Index min.: 90

Type IC in accordance with AS/NZS 60598.2.2-2016 Recessed Luminaires.

Dimensions: 1195 x 295 x 41 mm
Luminaire input power: 22.9 W
Luminaire luminous flux: 2416 lm

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2416 lm
  • Luminaire efficacy*:106 lm/W
  • Colour Rendering Index min.:90
  • Ballast:1 x 28002476 LC 25W 350-600mA flexC SC ADV
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:22.9 W Power factor = 0.95
  • Dimming:FO
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • LED
  • IP40
  • LED
  • RCM
  • SC2 - Protection Class 2
