  • Recuvo C — RECUVO C 6000-940 HF MPT 12X3 FP IP65

Recuvo C / RECUVO C 6000-940 HF MPT 12X3 FP IP65

96652926

▼ Data Sheet

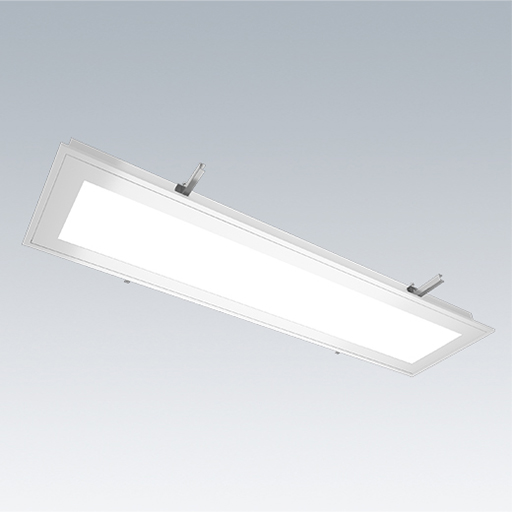

Normal purity ceiling recessed LED luminaire. Bottom access. Electronic, Fixed output control gear. Class I electrical. IP65 from all sides. Impact strength: IK08. Body: welded steel, white painted. Cover: PC for chemical resistance in clean rooms. Slot-in frame design. Operating ambient temperature: -20°C to +40°C. Glare controlled by a micro-prismatic optic, UGR<19. Compliant with Cyanosis observation lighting requirements COI<3.3. Colour Rendering Index min.: 90. Suitable for use in clean rooms. Complete with 4000K LED and 3-core Flex&Plug. A suction cup is needed to access the luminaire and has to be ordered separately (art. 20935455).

Dimensions: 1230 x 324 x 80 mm, cutout: 1202x296mm
Luminaire input power: 60 W
Luminaire luminous flux: 6154 lm
Luminaire efficacy: 103 lm/W
Weight: 9.5 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:6154 lm
  • Luminaire efficacy*:103 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Ballast:1x HF_
  • Luminaire input power*:60 W Power factor = 0.96
  • Dimming:FIX
  • LED
  • IK08
  • IP65
  • RCM
  • SC1 - Protection Class 1
  • Ta = -20 to +40
