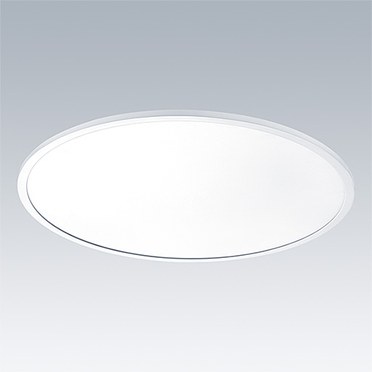

Omega Circular
Projects
MB Décor’s new development will see it into the next generation – with a little help from ThornThe Omega Circular is an extension to the Omega family which offers the freedom to change the geometry of the space
- Freedom of design: When you are looking for something different, we can help create a considered design with all new shapes
- Full family: There is a 300mm, 400mm and 500mm diameter product which offers you the choice to use this family in all kinds of spaces
- Application: Could replace a 600x600mm product in a wide variety of spaces in an office or school
- Unique installation: Created to fit exactly the tools a contractor would have in their toolbox. With the simple twist and lock mechanism we have made the installation simple and easy to complete
- Emergency option on special request
Materials and Finish
Body: aluminium and steel, white (RAL9016)
Diffuser: PMMA opal
Installation and Mounting
Suitable for semi recessed using twist and lock function, surface mounted can be achieved with this mechanism also.
Specification
To specify state:
A versatile circular edge lit panel for recessed mounting, with LED light source with 3000/4000K colour temperature, CRI>80 and a lifetime of 50 000 hours @L70 Ta 25°C
As Thorn Omega Circular
New Product
LumExpress Product
eControl Product
▼ Omega Circular
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| OMEGA C LED1500-830 HF R300 | 20 | 1551 | LED | 2.50 | 96631488 | ||||
| OMEGA C LED1500-840 HF R300 | 20 | 1551 | LED | 2.50 | 96631489 | ||||
| OMEGA C LED2800-830 HF R400 | 33 | 2800 | LED | 3.30 | 96627771 | ||||
| OMEGA C LED2800-840 HF R400 | 33 | 2800 | LED | 3.30 | 96627770 | ||||
| OMEGA C LED3200-830 HF R500 | 42 | 3537 | LED | 4.50 | 96627779 | ||||
| OMEGA C LED3200-840 HF R500 | 42 | 3537 | LED | 4.50 | 96627778 |
▼ Omega Circular dimmable
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| OMEGA C LED1500-830 HFIX R300 | 20 | 1551 | LED | 2.50 | 96631490 | ||||
| OMEGA C LED1500-840 HFIX R300 | 20 | 1551 | LED | 2.50 | 96631491 | ||||
| OMEGA C LED2800-830 HFIX R400 | 33 | 2800 | LED | 3.30 | 96627773 | ||||
| OMEGA C LED2800-840 HFIX R400 | 33 | 2800 | LED | 3.30 | 96627772 | ||||
| OMEGA C LED3200-830 HFIX R500 | 42 | 3537 | LED | 4.50 | 96627781 | ||||
| OMEGA C LED3200-840 HFIX R500 | 42 | 3537 | LED | 4.50 | 96627780 |
▼ Omega Circular, accessories
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| OMEGA C SUSPENSION KIT | 1.50 | 96108617 |
