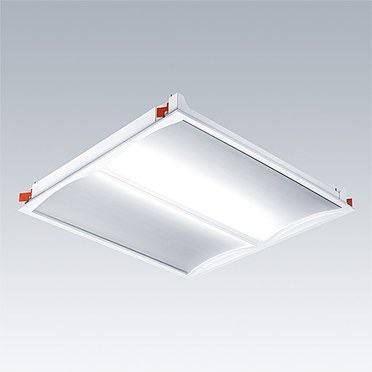

IQ Wave
Our next generation office luminaire features intelligent innovation in 4 key areas, design, optic, control and installation
- Design: simple and flowing lines create a modern but simplistic aesthetic.
- Optics: innovative MV tech optic designed by our expert optical team offers excellent uniformity and glare control, direct/indirect light for illuminance on faces and walls to encourage a comfortable, communicative working environment
- Controls: Integrated sensors allow you to create flexible control systems suited to your needs. Wireless solution controlled via App with Bluetooth® 4.x - basicDim Wireless. Also available are integrated PIR and microwave sensors.
- Installation: with our new red flag design you can easily access the pull up set from below the ceiling without the need to remove the optics from the product, allowing for a more secure fixing to the ceiling
Materials and Finish
Frame and end caps: polycarbonate
Diffuser: polycarbonate, aluminium designed heatsink
Body: highly reflective steel coffer
Gear tray: pre-coated white steel
Installation and Mounting
Suitable for lay in, with accessory suitable for pull up into concealed grid and plasterboard ceilings.
Specification
To specify state:
A lightweight recessed luminaire for exposed T, plasterboard and concealed grid systems with MV tech optic. LED indirect light source. 3000K/4000K colour temperature, CRI>80 and a lifetime of 50 000 hours @ L90 Ta 25°C including high efficiency at 103 Llm/W, UGR<19. With control systems, PIR, MWS, BC.
As Thorn IQ Wave.
New Product
LumExpress Product
eControl Product
▼ IQ Wave, basicDIM
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| IQ WAVE LED4100-840 BC Q597 MRE | 40 | 4250 | LED | 3.80 | 96631044 |
▼ IQ Wave configured articles, dimmable
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| IQ WAVE LED3100-840 HFIX Q597 MRE | 30 | 3200 | LED | 3.80 | 96628313 | ||||
| IQ WAVE LED4100-840 HFIX Q597 MRE | 40 | 4250 | LED | 3.80 | 96628314 |
▼ IQ Wave accessory
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ WAVE RED FLAG PULL UP KIT | 0.04 | 96628290 |
