  • IQ Beam — IQ BEAM HT 6300-840 MPT-F PIR SS Q600

IQ Beam / IQ BEAM HT 6300-840 MPT-F PIR SS Q600

96636078

▼ Data Sheet

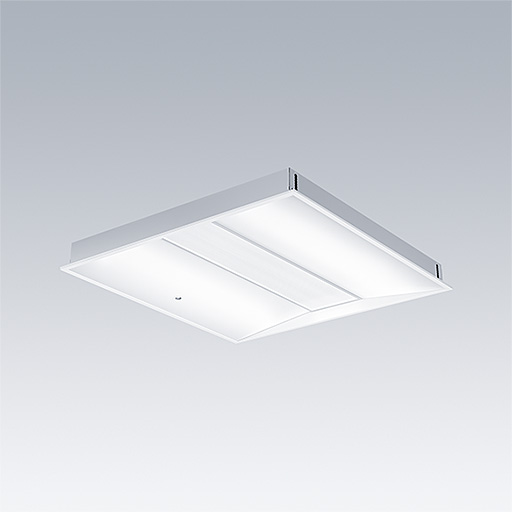

A linear optic, recessed modular LED luminaire for exposed T, plasterboard and concealed grid ceilings. Fixed output, LED driver. Class I electrical, IP20, Impact strength: IK03. Body: white painted steel. Diffuser: micro prism structure acrylic with diffusing foil. Suitable for lay-in installation, pull up installation optional. Equipped with PIR presence detector (SmartSwitch) for standalone on/off control. Complete with 4000K LED.

Dimensions: 597 x 597 x 60 mm
Luminaire input power: 50 W
Luminaire luminous flux: 6300 lm
Luminaire efficacy: 126 lm/W
Weight: 4.32 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:6300 lm
  • Luminaire efficacy*:126 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000713 LC 75W 100-400mA flexC lp EXC
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 50 °C
  • Luminaire input power*:50 W Power factor = 0.98
  • Dimming:FIX
  • LED
  • Einb_NDaeMat
  • GLedReP
  • 650°
  • IK03
  • IP20
  • LLedNr
  • RG1
  • SC1 - Protection Class 1
  • Ta = 0 to +50

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
