WeatherForce / WF G2 LED6500 830-57 L15 HFI E2

96650059

▼ Data Sheet

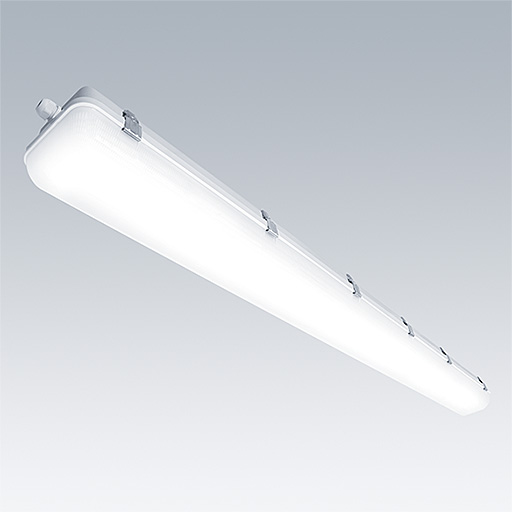

A wide body, linear, water resistant LED luminaire, specifically designed for general outdoor applications. DALI dimmable LED driver with 2 hour, manual test, emergency lighting circuit. Class I electrical, IP65, Impact strength: IK08. Body: light grey injection moulded polycarbonate, supplied with tamper resistant screws. Diffuser: opal polycarbonate. Gear Tray: sheet steel, powder coated white. WeatherForce G2 is able to be surface mounted or suspended. Complete with switchable light colour temperature 3000K - 4000K - 5700K LED.

Emergency classification in accordance with AS/NZS 2293, C0 = D63, C90 = D50

Dimensions: 1570 x 150 x 110 mm
Luminaire input power: 60 W
Weight: 4.7 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:6640 lm
  • Total emergency luminous flux:426 lm
  • Luminaire efficacy*:111 lm/W
  • Colour Rendering Index min.:80
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L70 50000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:60 W Power factor = 0.9
  • Standby Power*:0.15 W
  • Charging power:5 W
  • Dimming:DaliDim dimmable to 0%
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • LED
  • GLedNr
  • 750°
  • IK08
  • IP65
  • LLedNr
  • RCM
  • RoHs
  • SC1 - Protection Class 1
  • Ta = 0 to +40
