  • WeatherForce — WF G2 LED2500 830-57 L6 HFI

WeatherForce / WF G2 LED2500 830-57 L6 HFI

96650054

▼ Data Sheet

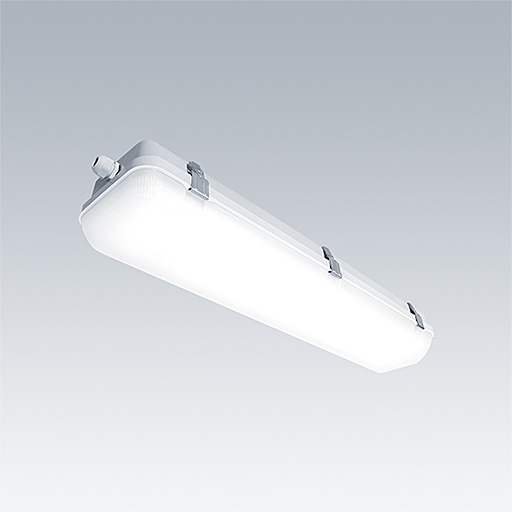

A wide body, linear, water resistant LED luminaire, specifically designed for general outdoor applications. DALI dimmable LED driver. Class I electrical, IP65, Impact strength: IK08. Body: light grey injection moulded polycarbonate, supplied with tamper resistant screws. Diffuser: opal polycarbonate. Gear Tray: sheet steel, powder coated white. WeatherForce G2 is able to be surface mounted or suspended. Complete with switchable light colour temperature 3000K - 4000K - 5700K LED.



Dimensions: 660 x 150 x 110 mm
Luminaire input power: 26 W
Weight: 1.73 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2777 lm
  • Luminaire efficacy*:107 lm/W
  • Colour Rendering Index min.:80
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L70 50000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:26 W Power factor = 0.9
  • Standby Power*:0.15 W
  • Dimming:DaliDim dimmable to 0%
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • LED
  • GLedNr
  • 750°
  • IK08
  • IP65
  • LLedNr
  • RCM
  • RoHs
  • SC1 - Protection Class 1
  • Ta=-20°C_to_+40°C
