  • HiPak Gen4 — HIPAK GEN4 L LED30000-840 RK BC

HiPak Gen4 / HIPAK GEN4 L LED30000-840 RK BC

96652605

▼ Data Sheet

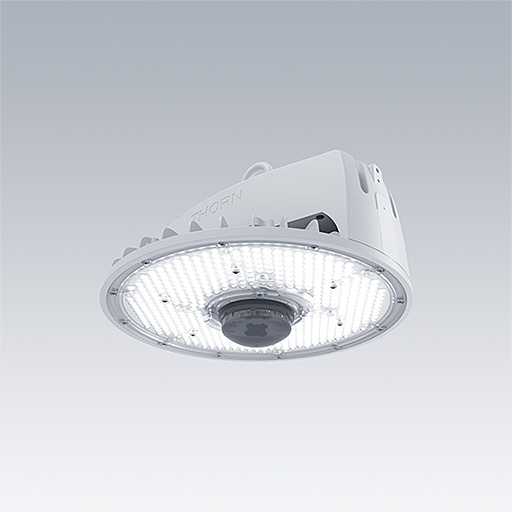

An IP65 single point suspension LED high bay luminaire with rack beam optic. Electronic, DALI-2 dimmable D4i , for 220-240V, 50/60Hz supply. Class I electrical. IK08. Housing: aluminium. Lens/Diffuser: polycarbonate. Supplied without mounting hook, stirrup or rod has to be ordered separately (rigid mounting is recommended). Equipped with 5 pole Quick Con¬nect socket. Wireless controlled via App with Bluetooth® 4.x - basicDIM Wireless Complete with 4000K LED.

ambient temperature: -20°C to +45°C

Dimensions: Ø380 x 170 mm
Luminaire input power: 170.8 W
Luminaire luminous flux: 30000 lm
Luminaire efficacy: 176 lm/W
Weight: 5.16 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:30000 lm
  • Luminaire efficacy*:176 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28004667 LCO 200/200-1050/355 pD+ NF C PRE3
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 100000 h at 25 °C
  • Luminaire input power*:170.8 W Power factor = 0.98
  • Dimming:Dali2D4i
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • Total harmonic distortion (THD):6.00 %
  • LED
  • D
  • GLedReP
  • 850°
  • IK08
  • IP65
  • LLedReP
  • RCM
  • SC1 - Protection Class 1
  • Ta = -20 to +45
  • UKCA
