  • Gladiator — GLAD G2 LED6000-840 L12 HF

Gladiator / GLAD G2 LED6000-840 L12 HF

96651481

▼ Data Sheet

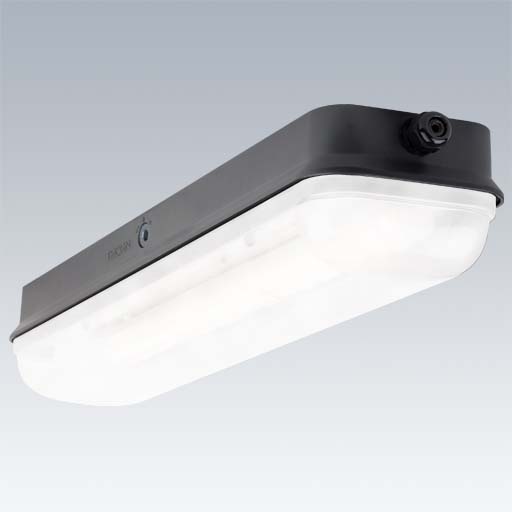

A robust luminaire, suitable to operate in ambient temperatures up to 40°C.Lumen output can be selected by changing I-Select resistor; Default output of 5941 lm (HI) or 3945 lm (LO). Electronic, fixed output control gear. Class I electrical, IP66, IK10. Body: die-cast aluminium with less than 1% copper content, finished anthracite powder coat (PANTONE Cool Gray 10C). Diffuser: opal polycarbonate. Safe-T Locking System (SLS) : thermoplastic alloy of polycarbonate and acrylonitrile butadiene styrene (ABS). Gasket: liquid poured. Complete with 4000K LED



Dimensions: 1316 x 163 x 115 mm
Luminaire input power: 51 W
Weight: 7.9 kg

Mode selection
  • Lamp position:HI - High mode
  • Light Source:LED
  • Luminaire luminous flux*:5941 lm
  • Luminaire efficacy*:116 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000713 LC 75W 100-400mA flexC lp EXC
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:51 W Power factor = 0.96
  • Dimming:FO
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • LED
  • IK10
  • IP66
  • RCM
  • RoHs
  • SC1 - Protection Class 1
  • Ta = 0 to +40

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
