  • Cetus — CETUS3 L 1000-840 HF RWH

Cetus / CETUS3 L 1000-840 HF RWH

96634891

▶Change configuration

  • Base: 96634891 — CETUS3 L 1000-840 HF RWH

▼ Data Sheet

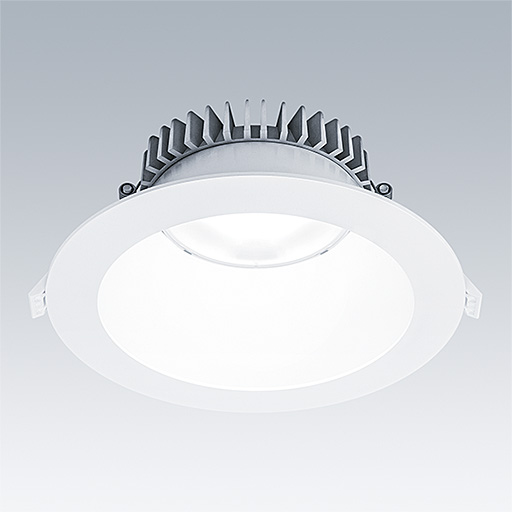

A low height, recessed LED downlight. Suitable for ceiling cut-outs Ø190-230 mm for easy refurbishments or fast initial installations. Remote, pluggable, Fixed output LED driver. Loop in - loop out possible. Body: die-cast aluminium for thermal management. Diffuser: polycarbonate, smooth reflector in white finish with wide beam. Reflector and trim: high quality, highly reflective polycarbonate. Class II electrical, IP44_IP20. Spring clips suitable for ceiling thicknesses from 1 to 35 mm. Complete with 4000K LED



Dimensions: Ø248 x 100 mm
Luminaire input power: 7.7 W
Luminaire luminous flux: 1140 lm
Luminaire efficacy: 148 lm/W
Weight: 0.68 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1140 lm
  • Luminaire efficacy*:148 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 87500988 LC 7/200/35 fixC SRL SNC2
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:7.7 W Power factor = 0.51
  • Dimming:FIX
  • Maintenance category CIE 97:C - Closed Top Reflector
  • LED
  • NoIsol
  • GLedReP
  • 850°
  • Hfree
  • IK06
  • IP44_IP20
  • LLedReP
  • RCM
  • RG1
  • SC2 - Protection Class 2
  • Ta = 0 to +25
  • UKCA
