  • Base Pro — BASE PRO 200 LED 2000-940 HFI WH FP

Base Pro / BASE PRO 200 LED 2000-940 HFI WH FP

96650620

▼ Data Sheet

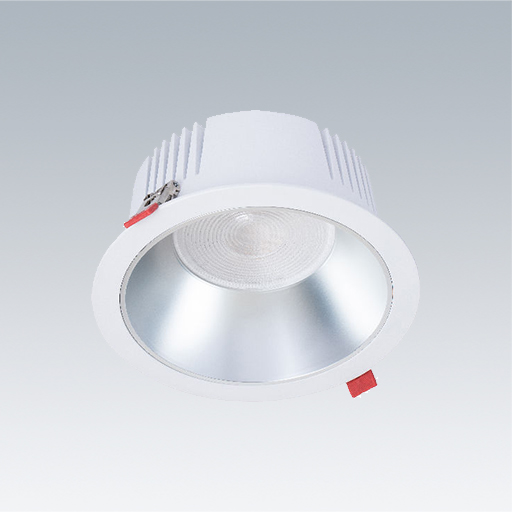

A high performing, low height, recessed LED downlight. DALI dimmable LED driver. Body: die-cast aluminium, powder coated white. Reflector: matt aluminium. Diffuser: opal polycarbonate. Class II electrical, IP44_IP20, Impact strength: IK08. Spring clips suitable for quick installation. Cut-out: Ø200mm. Complete with 4000K LED. Fitted with flex and plug.. Note: UGR<19 for office applications compliant with CIE testing method.

Dimensions: Ø220 x 100 mm
Luminaire input power: 19 W
Luminaire luminous flux: 1900 lm
Luminaire efficacy: 100 lm/W
Weight: 1.4 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1900 lm
  • Luminaire efficacy*:100 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:19 W
  • Dimming:DaliDim dimmable to 1%
  • Maintenance category CIE 97:C - Closed Top Reflector
  • LED
  • 850°
  • IK08
  • IP44_IP20
  • RCM
  • RoHs
  • SC2 - Protection Class 2
  • Ta=-20°C_to_+40°C
