  • Base Pro — BASE PRO 150 LED 2500-940 HFI WH FP

Base Pro / BASE PRO 150 LED 2500-940 HFI WH FP

96650618

▼ Data Sheet

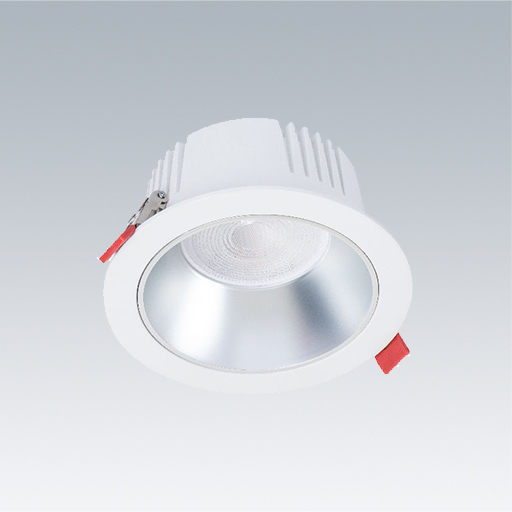

A high performing, low height, recessed LED downlight. DALI dimmable LED driver. Body: die-cast aluminium, powder coated white. Reflector: matt aluminium. Diffuser: opal polycarbonate. Class II electrical, IP44_IP20, Impact strength: IK08. Spring clips suitable for quick installation. Cut-out: Ø150mm. Complete with 4000K LED. Fitted with flex and plug.. Note: UGR<19 for office applications compliant with CIE testing method.

Dimensions: Ø165 x 80 mm
Luminaire input power: 29 W
Luminaire luminous flux: 2580 lm
Luminaire efficacy: 89 lm/W
Weight: 0.9 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2580 lm
  • Luminaire efficacy*:89 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Ballast:1x LED_DRV
  • Luminaire input power*:29 W
  • Dimming:DaliDim dimmable to 1%
  • Maintenance category CIE 97:C - Closed Top Reflector
  • LED
  • 850°
  • IK08
  • IP44_IP20
  • RCM
  • RoHs
  • SC2 - Protection Class 2
  • Ta=-20°C_to_+40°C

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
